Convective heating is one of the most versatile way of delivering heat.

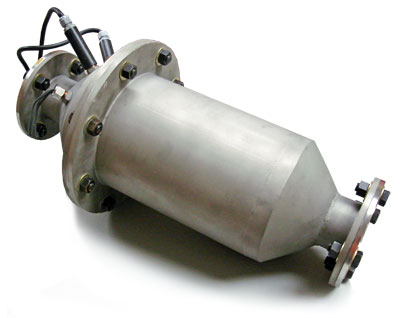

MTA925 Models For Hydrogen and other Non-Combustible Mixtures or Air to 925°C. Use with Compressor.

MVTA Models for Air. Use with Blowers. Temperature upto 925C.

The MTA925 and MVTA925 delivers heated air/gas up to 925°C. Intended for intermediate temperature use i.e. more than that available

from the LTA or VTA and less than that available from AT or PA models. MVTA's are supplied with low flow controls (call MHI).

The MTA is also a completely sealed solution for non-benign gasses. Not for combustible gas mixtures.

Should you require to heat combustible gasses for abatement purposes

such as for semiconductor gas abatement then please contact MHI for very special plasma solutions.

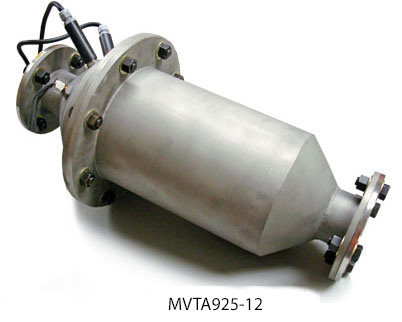

MTA925-12 12kW (flanged)

mating flange available

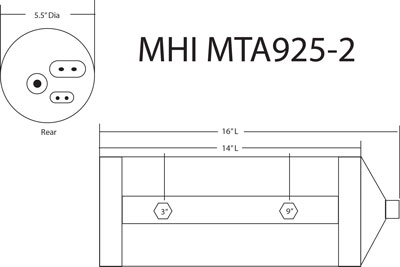

MTA925-2 2kW (NPT outlet)

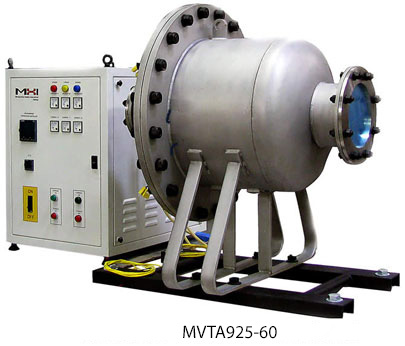

MTA925-60 60kW MVTA Control Panel

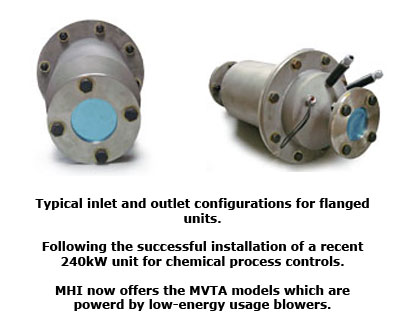

MTA Airtorch - outlet MTA Airtorch - inlet

Typical inlet and outlet configurations for flanged units.

Following the successful installtion of a recent 240kW unit for chemical process controls.

MHI now offers the MVTA models which are powerd by low-energy usage blowers.

MTA Airtorch Accessories. Please Call or email MHI for MVTA Accessories.
	FLM750 - Flowmeter 2-23 SCFM (click for larger images) FTB750-6 - 6' Air/gas supply tubing FS750-A - Adjustable flow rate detection valve and switch FS750 - Flow rate detection valve and switch MTAR - Moisture trap ensures dry air to Airtorch™ Knife nozzle NPT Nozzle - with fitting for pipe extension

MTA and MVTA Models	Choice of Voltages
MTA925-2 2kW or MVTA925-2 2kW (2kW model is restricted to 850C) MTA925-4 4kW MVTA925-4 4kW MTA925-6 6kW MVTA925-6 6kW MTA925-10 10kW MVTA925-10 10kW MTA925-12 12kW MVTA925-12 12kW MTA925-24 24kW MVTA925-24 24kW MVTA925-36 36kW (MTA models available) MVTA925-48 48kW(MTA models available) MVTA925-60 60kW(MTA models available) MVTA925-120 120kW(MTA models available) MVTA925-240 240kW((MTA models available)	208/220/230/240/260/380/415/440/480 Please request detailed specifications
Maximum pressure rating of chamber is ~16psi. For higher pressure inlets choose GTA models. Please call MHI for details and exact specifications. Specifications subject to change at the time of quotation.

Temperature measurements are reported at the integrated thermocouple location supplied with the MTA.

Please contact MHI to design the best solution for your application.
