MagnaCoil Heating Element Request for Quote

Request for Quotation



Contact Information
Full Name:
Country:
Company:
Phone:
Address: Fax:
City: E-mail:
State:
 Zip:
Website:
MagnaCoil Model:

If accessories (connectors, holders, straps etc.) are required please review on accessory page.  Please use the Contact-us link on the accessory page to specify the accessories.  Please do not hesitate to call and speak to a live person at 513-772-0404.  Thank you.



Please fill in the contact information choose the part number from drop down menu and click Submit Information. If you would like us to quote a custom coil please use the calculator below for power and dimensions. You will be able to click the submit information button again at the bottom of the page.

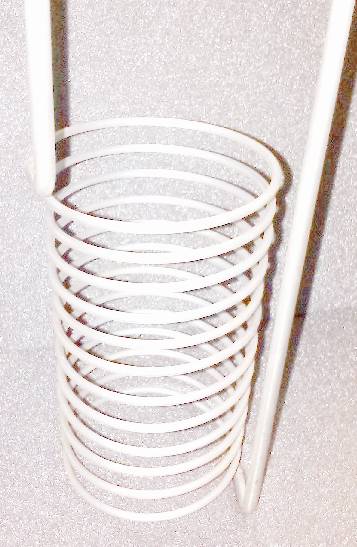

  Vertical MagnaCoil Needs CH Spacers for High Temperature Use

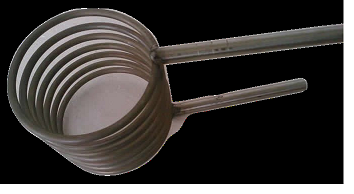

MC Models with Cross Line Terminals. Specify Di(Internal Diameter), n (Number of Turns), Lz (Coil Length), Lu (Terminal Length).

For vertical-configuration use (shown above) please monitor coil current and use spacers above 850C.





high temperature coil element

IMC Models with inline terminals. Specify Di, n, Lz, Lu1 (Small Terminal Length) and Lu2 (large Terminal Length)

Standard MagnaCoil Specifications

MagnaCoil Part #

MC  n/Di/Lu/Lz

Lz/n=12.5mm

Di
Coil inside diameter
Lz

Coil length

(same as terminal separation for standard coils)

n
Approx. number of turns

Free radiating mode power Watts

(at maximum temperature of coil)

Free Radiating Mode

Terminal Dimensions Type/Length

Cross-Line
In-Plane

Same-side terminals

MC-8/1/4/4 1" 4" 8

0.7 kW

Assuming limited Enclosure

Standard terminal

Web Price with Power Transformer

MC-8/2/4/4 2" 4" 8

1.3 kW

Assuming limited enclosure

Standard terminal

Web Price with Power Transformer

MC-8/3/4/4 3" 4" 8 kW Standard terminal
MC-8/4/4/4 4" 4" 8 kW Standard terminal
MC-8/5/4/4 5" 4" 8

kW

Standard terminal



MagnaCoil Part #

IMC n/Di/Lu1-Lu2/Lzhigh temperature coil element

IMC n/Di/Lu1-Lu2/Lz



Lu2=Lz+Lu1



Lz/n=12.5mm

Di
Coil inside diameter
Lz

Coil length

(same as terminal separation for standard coils)

n
Approx. number of turns

Free radiating mode power Watts

(at maximum temperature of coil)

Free Radiating Mode

Terminal Dimensions Type/Length

Cross-Line
In-Plane

Same-side terminals

IMC 12/3/12-18/6 3" 6" 12 kW

Standard terminal




For Custom MagnaCoil™ (1450°C)

(Temperature inside the MagnaCoil™ is influenced by configuration and use)

It is recommended to not exceed a coil surface temperature of 1400°C for longest life

Heated Coils must be supported by a suitable refractory.  For assistance see accessories or Call MHI.

Calculate Free Radiating Power* or kW of Product
  • See Calculator for Power

    *Free radiating power is dissipated by the coil when there is no surrounding refractory. The use of a refractory sleeve of appropriate thickness is recommended if the objective is a temperature inside the enclosure.
    * *When using with a refractory sleeve, the current required will be lower, when compared with the open coil configuration, once steady state conditions have been reached.
  • For MagnaCoil™ please specify: Lu for MC Models (cross line terminals) or both Lu1 and Lu2 for IMC Models (in line terminals)
    n (fixed if Lz is specified) =
    Lu or (Lu1 and Lu2) =

    inches

    Di =
    inches
    Lz (fixed if n is specified) =

    inches



    Quantity desired:

    MHI offers a complete line of element accessories.
    (connector clips, braided wire, etc.)Support Ceramics for Coils

    BPAN-O-2010 control panel
    MHI offers a full line of electronic controllers and control panels.
