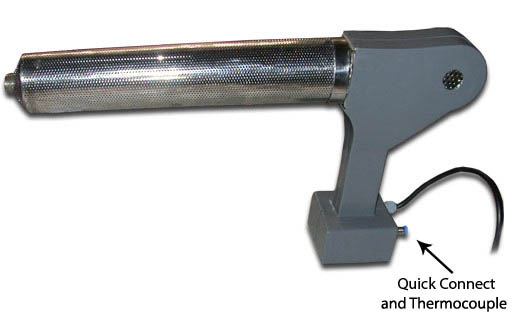

VHGA Superheated Steam Generator 1kW
VHGA
Model |
Output |
Power |
Voltage |
VHGA
750-1 |
Superheated
Steam |
1KW |
110V
50/60Hz |
Pump
Setting # |
Water
Flow Rate mL/minute at 25C |

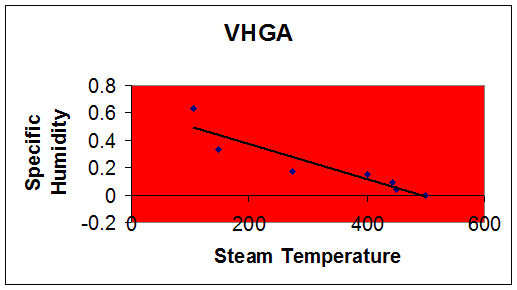

VHGA
Steam Exit temperature, C open to atmosphere. Will be higher in tube. |
Approximate
Specific Humidity |
5 |
2.0 |
450
-454 |
call |
6 |
4.5 |
431-443 |
call |
7 |
7.5 |
355-401 |
call |
8 |
8.9 |
242-272 |
call |
9 |
17.0 |
134-149 |
34% |
9.9 |
31.9 |
~105C |
63% |
At high
settings condensation could occur depending on use.
Request For Quote

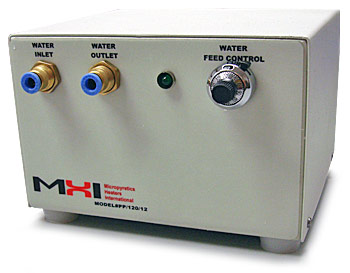

Peristaltic
Pump Motor - controls steam quantity
Part # PP/120/12

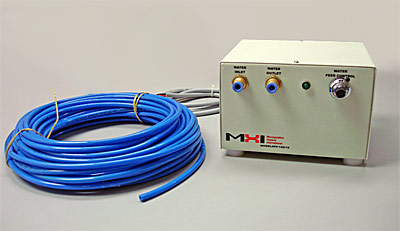

optional tubing shown
quick connect and disconnect
continuously adjustable
0-32 mL/min
120V
Peristaltic
Pump Setting Number |
Water
Flow Rate mL/minute at 25°C |
4 |
0.2 |
5 |
2.0 |
6 |
4.5 |
7 |
7.5 |
8 |
8.9 |
9 |
17.0 |
10 |
31.9 |
Click
here for High Efficiency Steam Recirculating Ovens
Article
on HGA output for steam and superheated steam.
Read an article on "Drying with steam or drying with air - a case study for clay, wood, food processing, etc".
Patents granted and pending
