Features

Fully programmable - 16 step programming Interface and program your MHI control panel from your PC Multi-tab option Monitor up to 8 additional thermocouples with the MHI-8DATALOG module Multi-furnace/zone control Automatic data logging into Excel files Remote ON/OFF Temperature controls Graphical data display

Items included with MHI-DACS: MHI-DACS module (choice of module for 1 to 12 zones/furnaces) Installation CD for MHIComm ver 7.2 software DB9 cable DIN cable RS232 converter module Communication card for the Eurotherm Process controller Installation and operation manual

Please email us or call (513) 772-0404

System Requirements

MHI-DACS module (choice of module for 1 to 12 zones/furnaces) Installation CD for MHIComm ver 7.2 software DB9 cable DIN cable RS232 converter module Communication card for the Eurotherm Process controller Installation and operation manual

Applications

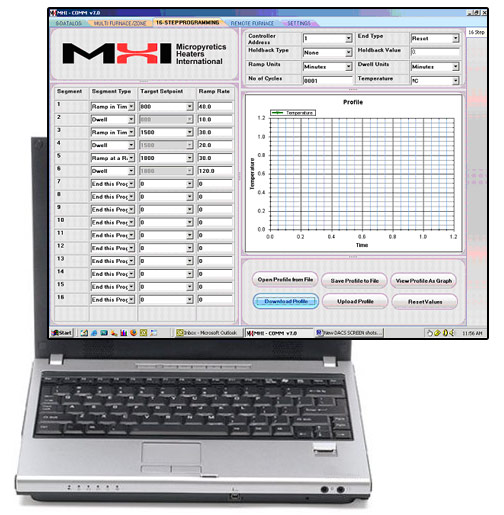

16-step Programming Program new cycles and download remotely. Upload programs and remotely execute cycles. Choose from over 70 heat treating processing profiles for ceramic, metals and many others. Download programs from controller to PC. Save profiles to file on PC for later use without the need for a multi-program controller. Multi-furnace programming is possible up to 12 controllers.

Furnace Monitoring Single or multiple furnaces/zones (up to 12) may be controlled and monitored as shown above.

Remote Furnace Control Monitors and records set point, process and output values from the Eurotherm process controller. Monitors temperature settings. Displays values from 12 different controller addresses. View data in an Excel table with date, time, sample time, process, set point and output values. Review saved data files in a graphical form. Remote furnace ON/OFF will turn furnace ON/OFF from your PC.

Please email us or call (513) 772-0404

Data Logging

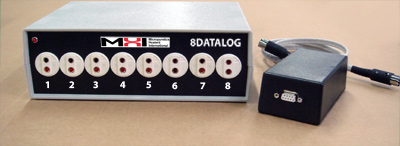

MHI-8DATALOG Module MHI-8DATALOG Module can be used with MHI DACS or as a stand-alone data acquisition unit. When used with MHI DACS, the MHI-8DATALOG module allows for the monitoring of 8 additional thermocouples in the application or process. When MHI-8DATALOG is used as a stand alone device, it can record data from 8 unique thermocouples and present the data graphically. MHI-8DATALOG module shown with the RS232 converter module

Items included when MHI-DACS and MHI-8DATALOG are purchased: MHI-DACS module MHI-8DATALOG module Installation CD for MHIComm ver 7.2 software DB9 cable Two DIN cables RS232 converter module Communication card for the Eurotherm Process controller Installation and operation manual   More Information on MHI-8DATALOG
