Molybdenum DiSilicide Bent Heating Elements


Request for Quotation

Heating Element Information

Quality, Technology, and Service that counts! Why MHI elements are the best.



90° bend in heating section
90° bend in heating section


90° bend in LU


45° bend in LU

Heating Elements up to 1900°C

Molybdenum DiSilicide Bent Heating Elements

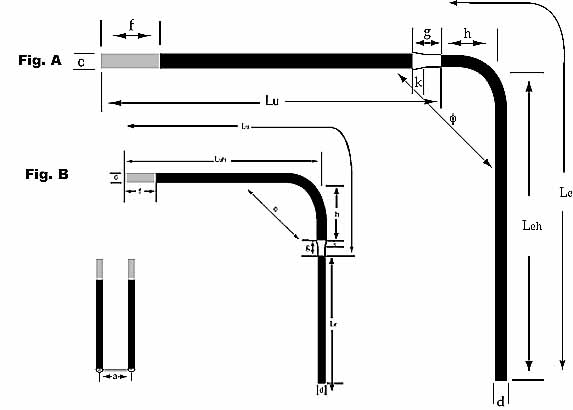

Fig. A refers to bend in element.  Fig. B refers to bend in terminal.


To order elements with a bend in the terminal section, please provide the following information:

Dimensions:
   inches  cm
Le (heating section length)
Lu (terminal section length)
a (distance between shanks)
g (transition zone length)
Luh (unbent portion)
f (bend angle)
c (terminal diameter) & d (element diameter)





To order elements with a bend in the heating section, please provide the following information:



Dimensions:
   inches  cm
Le (heating section length)
Lu (terminal section length)
a (distance between shanks)
g (transition zone length)
Leh (unbent portion)
f (bend angle)
c (terminal diameter) / d (element diameter)





Element Temperature and Quantity:

 MP1850
(Max element temp. 3,362°F / 1850°C. Suggested Max Furnace Temp. 3,182°F / 1,750°C)

 MP1900
(Max element temp. 1850°F/1900°C. Suggested Max Furnace Temp. 1800°C/ 3,272F)

Quantity desired:
Custom Items:

Please specify quantity and shape. Fax drawing to 513-672-3333.
