The Most Modern Steam Generator and Boiler Technologies. The Units Offer Independent Control of Temperature, Pressure, and Steam Output: ethernet and HMI.
Click here for Steam Products Home Page.
GOAB versatile variable steam generators up to 800C. With variable steam flow rates up to 30 Kg/hr. Contact MHI with steam flow rate, temperature, and back pressure up to 50 bar.
Typical models. Please specify your flow, temperature, and back pressure requirements.
- GOAB-Var-8KW-240V-500C-40(PV) 2- 5 Kg/hr 500C, 40 Bar
- GOAB-Var-12KW-240V-500C-25(PV) 6- 12 Kg/hr 500C, 25 Bar
- GOAB-Var-16KW-240V-800C-25(PV) 6- 12 Kg/hr 800C, 25 Bar Three phase
- GOAB-Var-24KW-240V-500C-10(PV) 10-25 Kg/hr 500C, 10 Bar Three phase
- GOAB-Var-30KW-4800V-800C-2(PV) 12-24 Kg/hr 800C, 2 Bar Three phase
Pressure and flow rate are independent settings. The flow rate can vary from about 30% to the total amount of the specific model—modern HMI panels for touch screen interface for operator ease. The control panel can be UL or with cUL ratings. ASME PV ratings are provided when requested.
For high-flow rate models 40-1200Kg/hr, please click here
GOAB™, when the back pressure expected, is more than 2Barg. MOAB™ when it is less. Please specify in the RFQ.
From 2 Kg/hr to 24 Kg/hr Scalable Super-heated Steam with variable flow and back pressure.
For 1 Kg/hr, please click here

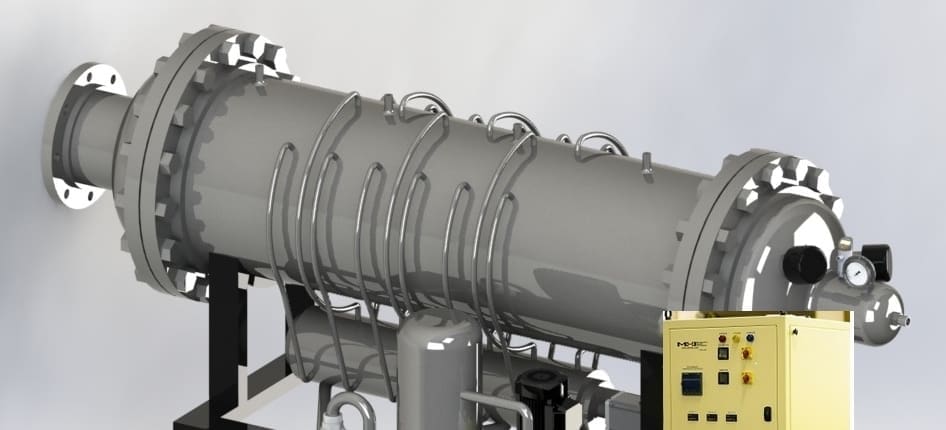

For 40-1200Kg/hr, please click here
Control the flow and temperature independently with flow and power controllers—Independent pressure control.
Visit this page, particularly if:
- You seek high-efficiency, on-demand, high-temperature steam or steam gas mix generators.
- You are looking for independent control over temperature, flow rate, and pressure
- You are considering changing from a large combustion boiler to a clean steam generator, including discrete generators for every station
- If you are planning new fuel and CO2 conversion or related technologies
- if you have to optimize steam chemical reactions for syngas.
- When dedicated to sustainability and efficiency with steam generators.
- If you prefer to decouple pressure and temperature in your steam output.
- Steam is critical for high temperatures, say 400°C, 800°C, or 1300°C.
GOAB – Scalable Platform Models/Features. Set flow on a touch screen HMI. Set the flow temperature and pressure independently.
More MHI team Generator Models, Plasma Steam Models, and Steam Chambers.
- The OAB® steam generator systems will change your thoughts on super-heated steam regarding installation, safety, size, fuel production, and operational costs.
- Please contact MHI for details, information requests, or quotes.
Easy to use.
On-off steam. On or off for any steam-gas mix.
For fine-tuning pilot process development for quick scale-up to production. High-Temperature Steam for Pharma Use
Typical and frequently asked questions:
Q: I need a variable steam rate generator at a maximum temperature of 400°C to 800°C. Can I use your steam generator GOAB models? Ans: Yes, the GOAB models are the correct choice for variable flow and temperature requests. The price will also depend on the pressure vessel rating and variable (adjustable) range of steam flow. Typically we are asked for 3-6 Kg variable or 4-12 Kg variable steam at the high temperature with unit-adjustable backpressure.
Q: Can you provide a shell of 40 Bars? Ans: We can provide ASME Section V111, Div 1 standards with external rating.

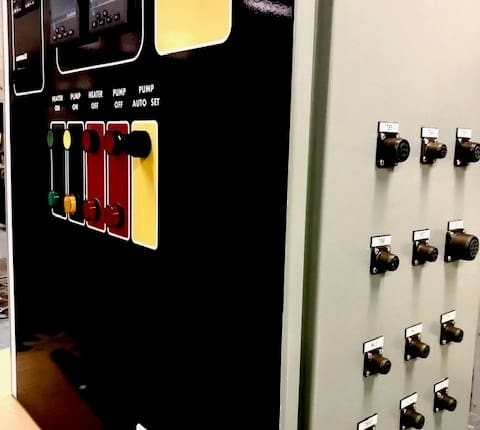

Q: Can I get a touchscreen HMI control panel? A: Yes, this is our standard on some models.
Q: I have a 49 KW boiler. Can I use your steam generator instead? Ans: Yes: The closest fit is the GHGA-36-(PV) or the OAb-50. Unlike boilers, the steam generator units can be on-off at will. No idling is required. The temperature output of the steam will be between 130C and 800C depending on the model, flow settings, and power settings. The price will depend on the pressure required and other selected features.
Q: Do steam generators work differently than boilers? Ans. Yes, steam generators work differently compared to pressure boilers (1) they are instant on-off, with no idling required (2) in a clever way, the pressure will only build to the maximum line requirement to improve the efficiency (3) temperatures can be set for very high temperature with high-quality dry steam, and (4) they can be easily matched to other line or cross-line pressure flows. Saves energy. Adds to the world sustainability index. Allows for new reactions and higher productivity options to be explored.
Q: I have a 200 Bar steam line that feeds the entire industrial testing plant. Can I use discrete 40 Bar steam GOAB units from you? Ans: Yes, the savings are enormous, and chances are that you will also be converting from a coal, oil, or gas-fired boiler to a clean electric unit. Use units at discrete locations—no dangerously long piping at high pressure and no idling. On-off at will.
Q: Antimicrobial steam? Yes, please contact MHI for data on antimicrobial or sterilization quality steam. Visit the steam application page.
Versatile instant steam generator with independent control of temperature, flow, and pressure functions.
Q: Are your Panels UL, cUL, or CE-rated? CE rating is only limited availability
A: Yes, one can order with any of these ratings.
Q: What are your typical pressure vessel standards?
A: Please contact MHI. Our usual standards are ASME Section VIII Div I.

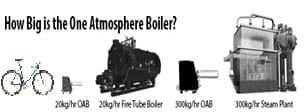

The steam generator foot print is likely to be considerably lower than a tradition boiler with the same output steam.
Pricing Advice: The price increases with temperature requirement, capacity of the steam generator, pressure requirement and other special requests.
Packing Standards follow International Norms
Considering bio-fuels or useful products like methanol from CO2 conversion? Please contact MHI Inc. with your reactor requirements.
Please contact MHI for details, information requests, or quotes.

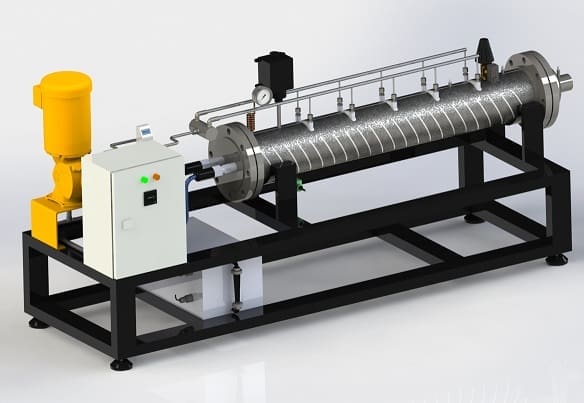

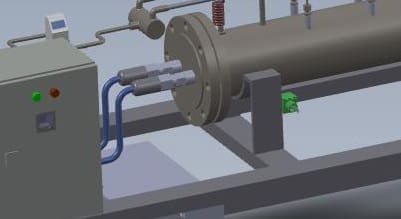

Highly Scalable OAB® or GHGA units can produce from 4 kg/hr to over 1000 kg/hr. The modular design allows for easy upgrades and utilizing the unit where it is needed, all without routing steam or venting pipes. MHI is well known for high-quality electronic power and temperature control panels.
OAB® and GHGA Scalable Platform Key Features.
Please contact MHI for details or a quote.
- On-Demand Steam
- Instant superheated steam generation (instant implies within a minute or much lower)
- 300°C-800°C(Discuss with MHI for up to 1300°C exit temperature)
- Scalable volume output starting at 4 or 6 kg/hr
- No Certification is required for pressure rating or inspection
- Built for energy efficiency and high productivity
- Small footprint. Easy to relocate as required.
- Discrete BPE or Continuous Steam Side amount variation.
- New PV Models with above
- Steam Tunnel Applications
- General Steam Applications

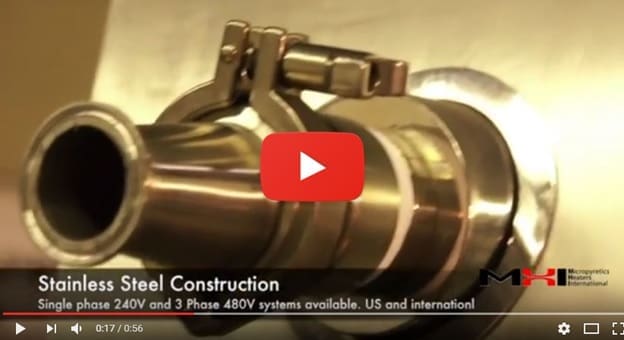

- Synopsis and video
- Steam Calculator, Productivity Enhancement, and FAQ’s
- Physical Properties of Moist Air/Gas
- What are Steam and Humidity?
- What is mist and fog.
- High-Efficiency Steam Recirculating Ovens
- Article on “Drying with steam or drying with air – a case study for clay, wood, food processing, etc”.
- Photosynthesis-type reactions with MHI products.
- Please contact MHI for details or quotes.
- Learn more about OAB® and its applications
- How do Temperature and Pressure Impact a Steam Reaction?
- OAB® Compared to Traditional Boilers
How to convert kW to BTU/hr
1 kW = 3412.142 BTU/hr
One BoHP (Boiler Horse Power)= 33,500 BTU/hr = 9.803 kilowatts

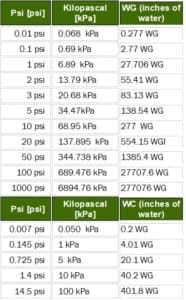

More Calculators for Engineering Units. Please click here.
Very accurate high temperature steam is required for pharma. Please select the GHGA models.
MHI provides the most efficient steam delivery flexible tubes.
Pharma bottle rapid sterility level cleaning.
Process has to be correctly adjusted for time and temperature
Want to find out how MHI can help you meet your steam needs?
Please fill out a quick questionnaire by clicking on the product of interest.
We will help find a good solution to meet your needs.
