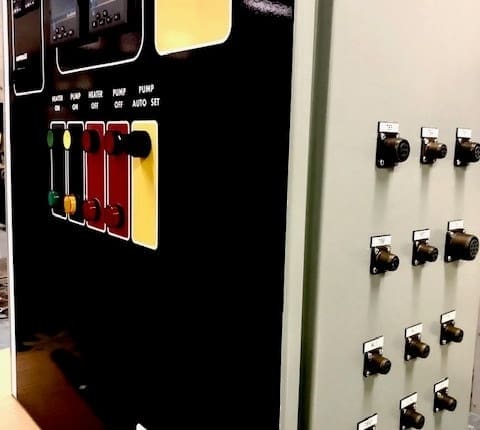

HIPAN-2016 control panelXPAN GHGA XPAN 1

Inside a sophisticated control panel.

Inside a sophisticated MHI UL control panel.

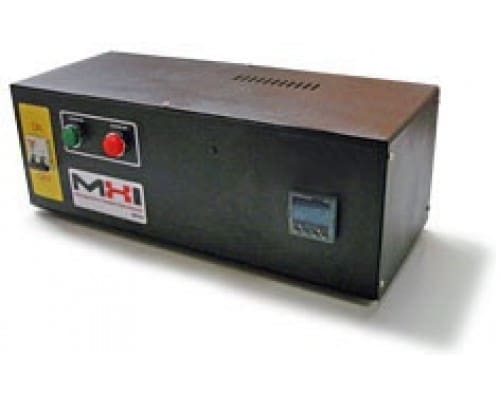

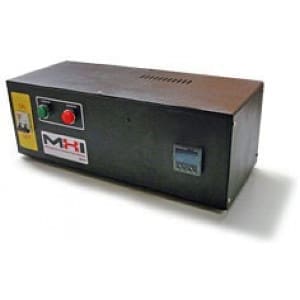

 BPAN-O and BPAN-O-PLUS

Specify (-T) in model number if device voltage is less than 4V

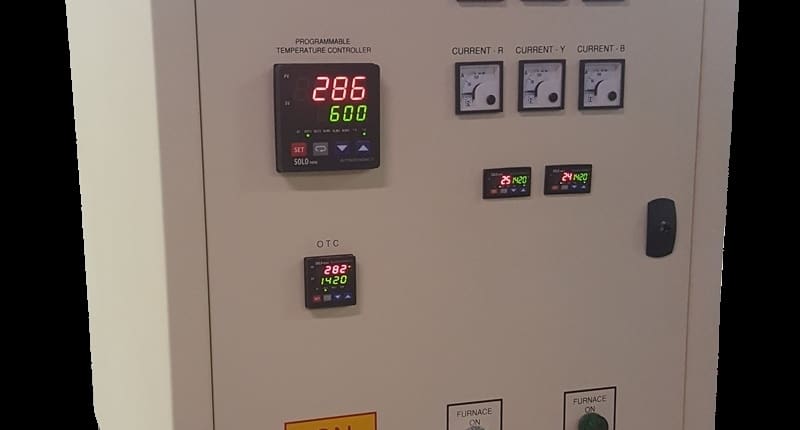

 TRIPAN

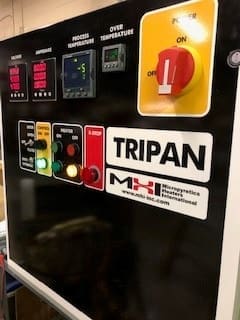

TRIPAN UL

TRIPAN UL

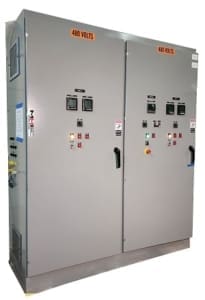

MW Panels

 HEAVY DUTY

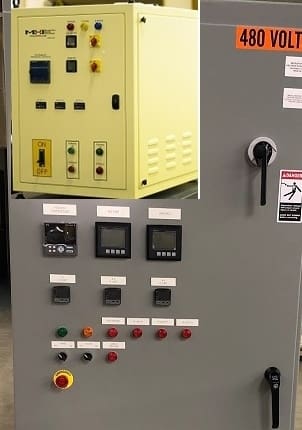

Power Panel

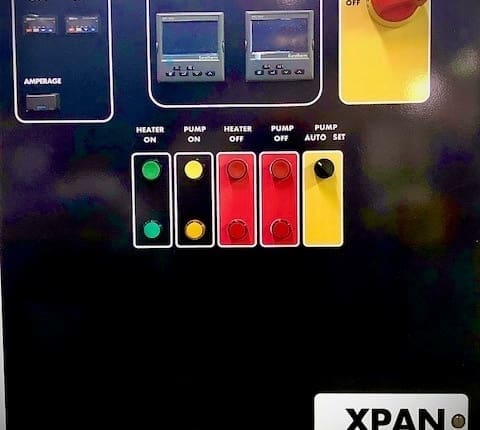

XPAN GHGA XPAN 2

XPAN GHGA XPAN 2

 Contact MHI

Request for Quote

Three Phase |TRIPAN |  Single Phase | XPAN & HIPAN, BPAN |

Return to the main MHI page for all energy-efficient products like Furnaces, Steam, Airtorch®, novel materials, and modern controls.

Three Phase Control Panel Options

The three-phase control panels offered by MHI fall into two categories.  The ITRIPAN is for steady loads. The TRIPAN is a more versatile product for more sophisticated controls and data transmission.  A major difference between the two kinds of panels lies in the functionality of the SCR in the panels.  The SCRs used in the TRIPANs offer softer load control and significantly more sophisticated control options, along with a current limit stabilization feature.

ITRIPAN

  • 1 control zone
  • 1 limit controller
  • Quality controller
  • Contactor for the load.
  • Fuses
  • Indicator for heater-on
  • Junctions for thermocouples
  • NEMA – 4  or NEMA 12.  Box cooling 3R Style
  • SCR -2 pole, zero-crossover type with proportional functions.

TRIPAN

  • One to multiple control zones
  • As required limit controllers (Typically Eurotherm or similar)
  • Quality process controller (Typically the brands offered are Eurotherm or similar.  UL CE Rated)
  • Contactor(s) for the load
  • Fuses
  • Indicators for heater-on and other indicators
  • Junctions for thermocouples
  • NEMA – 4  or NEMA 12.  Box cooling 3R Style or AC cooling
  • SCR -Phase angle fired with current limit
  • Ethernet as required or RS485 (customer option for communication).
  • Optional PLCs depending on the type of device
  • Optional HMI depending on control options, and type of device
  • EStop and remote Estop connection
  • Other dry contacts for customer integration into systems like Bacnet
