Radiant Flat Heaters (Electric) for Industrial Applications
Click here for High Flux High Temperature Hot Plates (Thermoplate)
High Wattage High-Temperature Glow Panels
Radiative Glow Panels from MHI offer a range of heat flux and high temperatures over a small or wide area. These uniquely patented devices, ranging from a few watts to megawatts, can produce radiant power for use as radiators or thermal batteries.
For more information, please click on the heater type shown below.

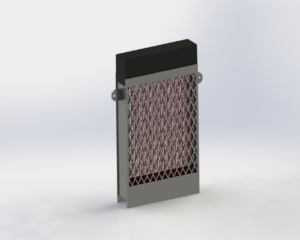

The picture shown is a 2 MW High-Temperature Radiative Panel (facet)
OAB steam generator software control
KW to MW Radiant Panel Heaters with Controls.
High Flux High Temperature. Patented Radiating Surfaces.
Are you looking for large MW Heating Radiatinve Panels?
with extremely high power output per unit area
and very high temperatures.

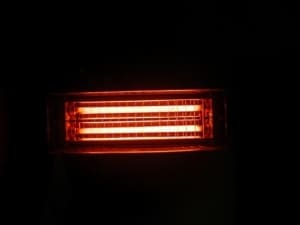

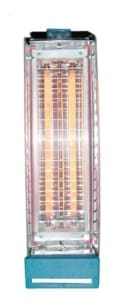

Radiative Glow Panels Horizontal or Vertical
Stand Available
24 KW ( Radiative Area 45o mm x 600mm)
High Power Glow Panels
72 KW (call for size)
Custom Models Available. Minimum order may be required. See Giant Panels.
URP Heaters. 12″ Boards. Use up to 1380°C. Click here for Horizontal Heaters. 1800 W
URP Heaters. 12″ Boards. Use up to 1380°C. Click here for Vertical Heaters. 1800 W
Versatile heating Panels for Furnace Construction
Radiant Flat Heaters (Patented High Power Electric Surface Heaters)
This catalog page is for shaped heater components only. Finished radiator units are called Thermoplates or Robust Radiators. Please click on those pages for finished products.
Choose from Complex shapes, GlowPanel™, Line-heater, or Spiral-heater models below, or please Contact Us to select models for your application.
Upgrade any existing lower temperature heating element (electric heater) you currently use with the UPESP material heating elements rated to 1850°C. (Please see the shapes below or inquire about other custom elements that better fit your needs).
MHI offers complete electronics control packages. The CE or UL panel ratings are provided when required.
MHI GAXP material heaters are very high-emissivity heaters
MHI manufactures easy replacement patented heaters that have a long-lasting performance. These are used in the semiconductor and deposition and additive manufacturing processes.
Contact us or call us at (513)-772-0404 for more information. For Coils, View our High-Temperature Coils Page
Decarbonization Principles

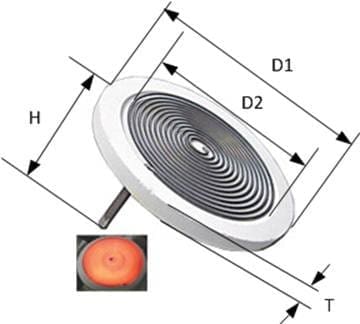

GAXP-Igmp Microheater Models and Glow Panels
Special elements ~ 1500°C-1900°C
| Model # | Size | Power | Maximum Temp |
| 12V Models | Contact MHI. | 200 Watts and Upward | Use from 1200-1600°C (Varies by model) |
| Model # (Sze of base plate) | Power | Element Shape |

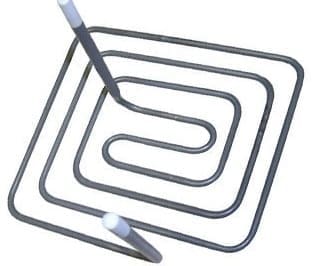

| UPESP-6.5* (choose a model for GAXP or MP) | ~3-6000W |  High-Density Square Heater |

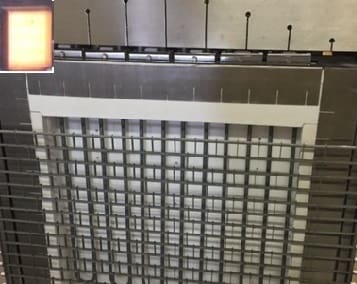

| High Power GP-24 (wall) GlowPanels High Heat Flux 24KW -72 KW 18″L x 18 “W 36″L x 36 “W | High Power Glow Panels |  Heated Glow Panel (GP) |

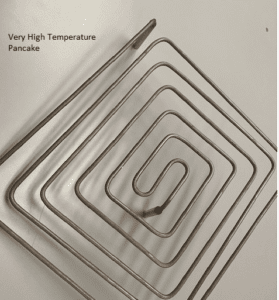

UPESP is a high-power molybdenum disilicide or GAXP pancake radiator. The element is supported by a patented non-reactive ceramic base plate with the heating element. Ask about our standard models.
Contact us at (513)772-0404 for more information.
Patented. Contact us UPESP (Base Plate – FiberFree™ Non-toxic)
* UPESP-6.5 serves as the replacement heating element for the HP220-HIGHBO-1250 Thermoplate™.
Please contact us or call (513) 772-0404
Power and Temperature Control Panels

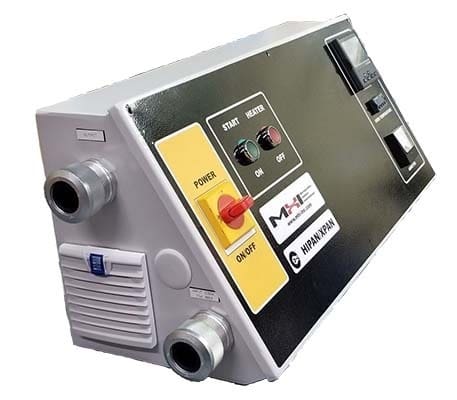

Control Panel

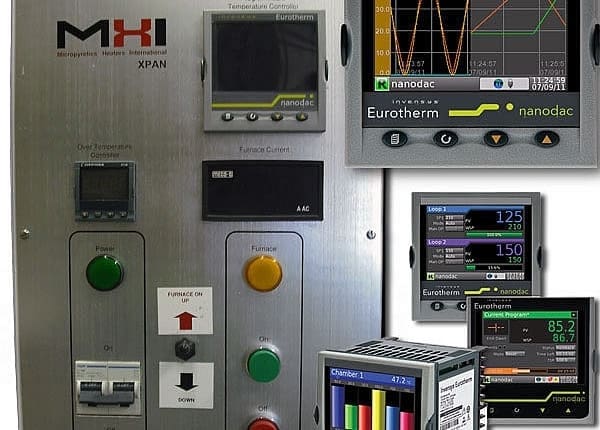

Temperature Control with Data Acquisition

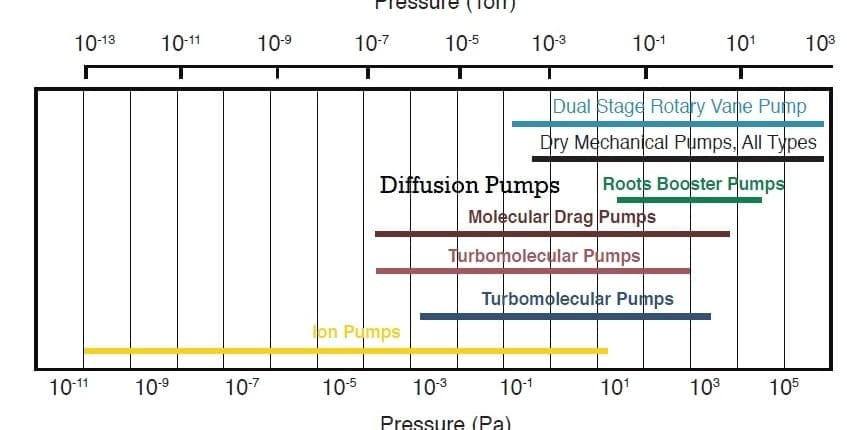

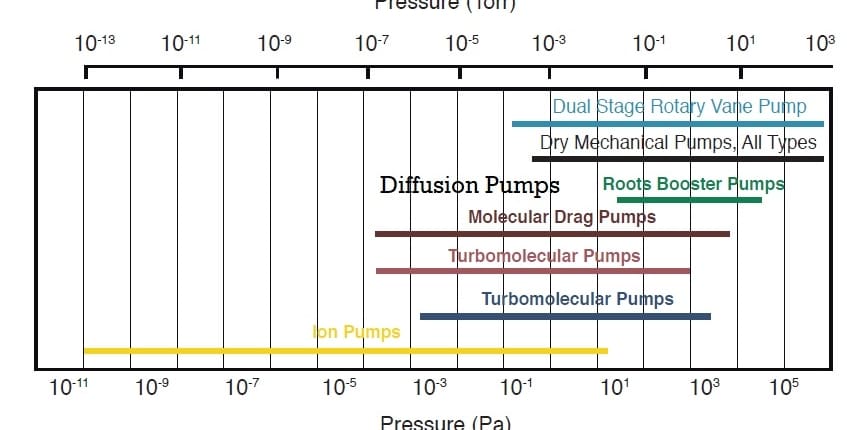

Vacuum Scales
TRIPAN Three-phase controller for High Power GP Glow Panels
