HGA-S Steam Generators from 100C to 1300C.  Variable flow and power.

Price and Specifications HGA-S-01 up to 400C

HGA-S-01-CX1300 up to 1300C

MHI’s steam devices feature high scalability, reliability, and versatility. The OAB steam generators feature BoilerFree™ technology.

Steam Generators can be used for chemical, mechanical or heating purposes with enhanced energy efficiency.

No moisture in the steam, quick start-up and shut down. Online help is available for design.

No CO/CO2 toxic gas by-products (electrical generation).

Some government surveys show that steam may account for one-third of all the energy used in process plants – so optimization with a high-efficiency generator will pay off.

The safe optimized HGA or OAB® system may significantly lower the cost of your steam system – yield large returns.

  1. Direct plug-in, self-contained system.  Price of HGA-S-01 on the MHI web store.
  2. High-Quality Steam (quality of steam is an industry-used technical phrase that indicates water content in steam). True HGA-S-01 steam is 100% steam quality (no moisture).
  3. Integrated Thermocouple.
  4. Includes Flow Rate Control with Pump Offerings that Provide Different Levels of Flow-Sensitivity and Display (Please see cN-BPE options)
  5. Vittori Flexible Tube available for flexible connection from the generator to the process chamber
  6. Other options include flow deflectors and back pressure tolerance enhancers (BPE)
  7. Optional cN-BPE for continuous adjustment of 0.3 Kg/hr to 1 Kg/hr is available for all HGA-S models.
  8. More information on HGA-S-01 and HGA-CX-1300 and HGA-P4-750  (4 Bar pressure discharge at 750°C)
  9. MHI Offers Test Chambers for Steam with Generators from 400°C to 1400°C.  These are custom chambers for Oxidation or Bio Testing for Small Coupons.  Please contact MHI with the request.
  10. Please contact MHI for ROI calculators.

General Specifications for 1 Kg/hr Steam Generators.

Optional cN-BPE for continuous adjustment 0.3 Kg/hr to 1 Kg/hr.

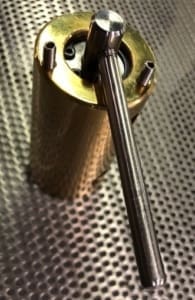

cN BPE

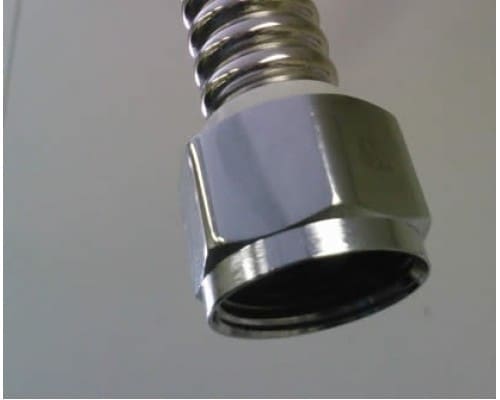

Vittori Tube and Nut-500x400

Vittori Tube and Nut

Optional:  Steam Chambers

Maximum Exit Temperature Controls Steam Output (maximum)

(click for information)

400°C

1300°C

 Control Panel for HGA-S-01

HGA-CX-1300 Control Panel

1 Kg/hr

1 Kg/hr

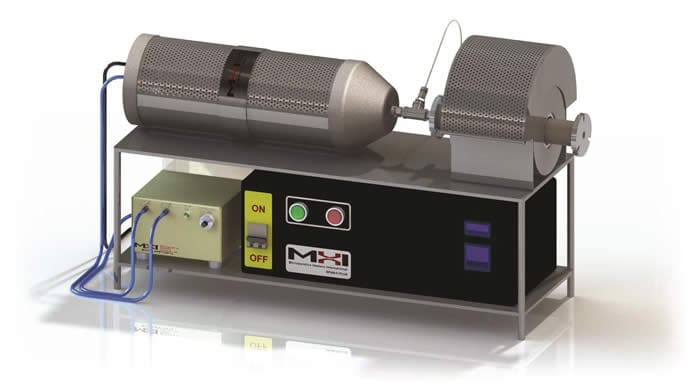

HGA-CX-1300 Picture shown above.  Contact MHI.

Click for Contact for Steam Test Chambers.
