Nano (Graphite and Copper) Coated Coupon Quasi-R®

$669.00

  • Model: Nano (Gr/Cu) Nanoporous Surface/Catalyst Coupon

Please review our Terms and Conditions.

SKU: c03de1b42706 Categories: Ceramic Products, Ceramic Supplies
  • Description

Description

Nano-graphite and Nano-copper particle mixture i.e. surface protrusions (particles)  on stainless steel or copper coupon.  Patented Process.  Please contact MHI is a different mix or different elements are required.

Product for Sale:  Test coupon 1cm x 1cm  304 stainless or Copper coupon with  nanometer deposits of nano-graphite and nano-copper. The nano-graphite is a mixture of double walled, single walled and amorphous carbon. Nano copper is copper nanoparticles.   Average size of nano copper is about 50-100 nm.  Graphite tube and and amorphous graphite content is about 20-100 nm.

Copper is pure 99.99% copper.

Use of Product:  Sample to test catalyst efficacy for alcohol conversion – with support substrate of stainles steel or copper.  Substrate coupon is about 1″ x 1″ and about 1 mm thick.  Coating thickness is ~500nm nominal with range discussed above.

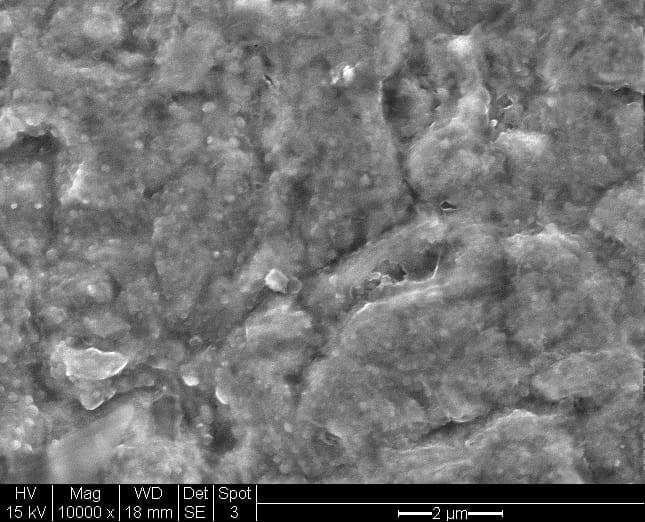

The particles are attached but may also wipe under abrasion.  Total coverage of porous particles is about 300nm-900 nm thick coating on the substrate.  High porosity.  Picture shows approximate coverage of copper/CuO/Carbon and TEM of peeled off carbon nano tube surface.  Composition of the coating/substrate is mostly C/Cu and substrate material. Nitrogen and Oxygen will also be present. Hot nitrogen atmosphere particulate deposited on surface.  Nitrogen content in solids  about ~1 wt% nominal.

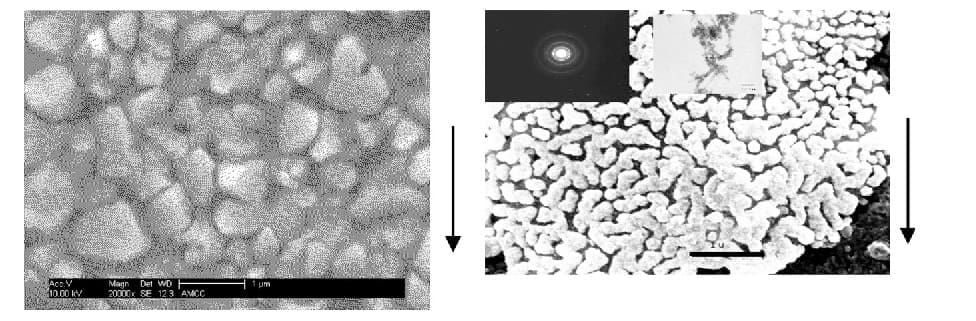

Picture shows approximate coverage and TEM of a peeled off graphite/carbon nano-tube type. Variations are possible from coupon to coupon.

The product (nano coating) is expected to contain approximately 50% by volume of copper and carbon phases on the surface with porosity and other elements like nitrogen and oxygen.  Not all phases have been identified.

Please indicate whether a Copper substrate or a 304 or 316  Stainless Steel substrate is desired if offered.   Please add this information to the remarks during check out.

Please contact [email protected] to provide a quote for other substrates or sizes or for volume requests.

Other Coupons

Nano-(choose alloy) Surfaced Stainless Steel Coupon Quasi-R®



Nano-Silver Coated Stainless Steel Coupon Quasi-R®
