3H14VST-GAXP Furnace with Control Panel

Call for Price

  • Model: 3H14VST-GAXP
SKU: MHI 3H14VST-GAXP Categories: Furnaces, Specials
  • Description

Description

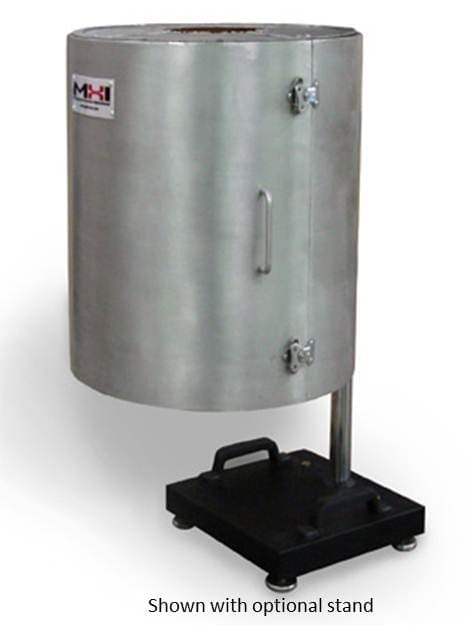

MHI 3H14VST-GAXP Multi- axes Split Tube Furnace

NEW! 1-Year Warranty on GAXP® Heating Elements!

All Stainless Steel

  • Continuous Temperature Range: 1400°C.
  • The Chamber Size Maximum is 3″ Top/ Bottom Opening diameter x 8″ L.  Please specify if the diameter required is lower.  Up to 5″ diameter can be accommodated.   Please get in touch with MHI at [email protected] or 513-772-0404 ext 110
  • Processing tube and stand are not included.
  • MHI Nano-Structured GAXP® elements.
  • The standard temperature controller is programmable with 16 segments.
  • Includes full furnace electronics: MHI BPAN-O-PLUS  Control Panel.  (Process and over-temperature controllers)
  • Furnace Power ~4 kW

MHI BPAN-O-Plus control panel with full furnace electronics.
The control panel houses switch gears, fuses, and circuit breakers.
Standard Controller: A programmable Temperature Controller is used for the heating process.
A 1/16 DIN digital display of set point and process temperature, PID temperature control, and adaptive tuning.
Programming Capability: Multi-program with 16 Segments
Eurotherm or equivalent over-temperature controller.
Compatible with MHI-DACS Data Acquisition and other third-party data acquisition software.

MHI ST9001 single-phase SCR (or equivalent) with advanced current limit and soft start feature.
Wiring requirements:  240 Volt, single phase @50/60Hz, 25Amp Max current (if voltages of 208V or 220V are desired, please indicate at time of order)
Maximum power output is 6kW (@220Volts).

Processing tube and stand are not included.

Please contact MHI at 513-772-0404 or by email at [email protected] should you have any questions or need more information.
