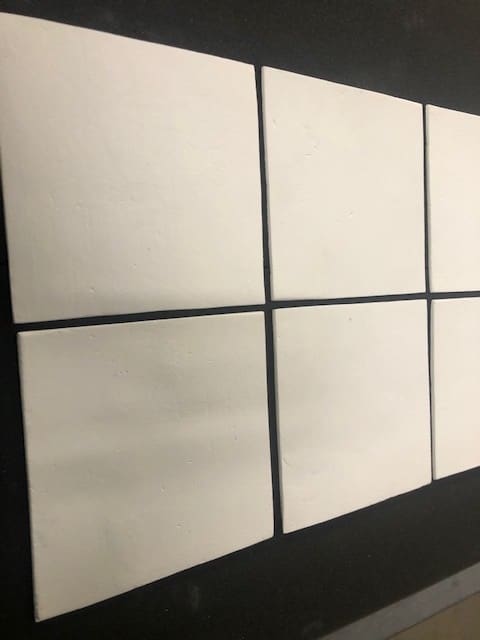

Cer RR ( 6″ x 6″ x 0.157″)

$112.00 $110.00

  • Model for Setter Plate: Cer RR ( 6" x 6" x 0.157")

Please review our Terms and Conditions.

SKU: Cer RR ( 6" x 6" x 0.157") Categories: Box Furnaces Parts, Ceramic Products, Ceramic Supplies, Furnaces, Repair and Replacement Tag: setter plate high temperature
  • Description

Description

Size:
6″ x 6″ x ~0.157″ (thickness of the plate ranges between 3 mm and  4 mm- the nominal tolerance range)

(generally in stock but please check with MHI).  When not in stock please plan 2-3 weeks.

Typical deviation +-0.07″ for width

Typical thickness approximately  4 mm

Properties of RR Fractalin

Color – White
Nominal Composition, wt %
Al203 – 95.9%
Density, g/cc – 1.1 Approximately.  A range will be observed.
Porosity, % – (~30-45 % average open ). Variability* will be noted in the porosity similar to all ceramic products.
Maximum Use Temperature, °C up to 1800°C
Thermal Conductivity ~ 0.95W/mK (temperature dependent)
Flexural Strength – High (please call)
Linear thermal expansion: Low (please call)

TYPICAL USAGE for RR Fractalin(s):

Cer RR setter plates are excellent material to use as high temperature plates.  Please contact MHI for custom shapes.   Cer RR Fractalins have a high  service life compared to any fiber insulating board, due to their mechanical, and chemical stability at high temperatures. Other applications include hot plates, setter plates, tops, gas combustion burners, fire protection and stops. Due to high porosity, high strength, and high melting point BR Fractalin boards find many other uses.

(Please note that there is a minimum quantity of purchase for this product)

The shipping quote on the site may not be accurate for volume orders.  The acknowledgement that MHI will send you for accepting an order will have the correct shipping price.
