Hot-Top Radiator + BPAN (Transformer Included)

Call for Price

  • Model: PH-SE-8.0
  • Manufacturer: Micropyretics Heaters International
SKU: Hot Top Radiator Categories: Furnaces, Radiative Heat Products, Specials, Store, Thermoplates, Web Specials Tags: decarbonize in castings, Equipment for Decarbonization
  • Description
  • Unit Features
  • Specifications
  • Related Products

Description

MHI HOT-TOP (click here for the Hot-Top Home page)

Used for clean risers, sensors, prototyping, brazing, and….. more with the proper bottom plate……

MHI BPAN-O-PLUS  Control Panel included

The stainless steel housing package includes a perforated wiring guard for high safety.

MHI NanoFractalAlumina(TM) and FiberFree(TM) refractory technology for long life.

Thermocouple and connections package standard.

208/220/240 Volt, single phase input control panel included. BPAN-O-PLUS with two TCs.

Maximum power:  4-6kW

High Temperature with MoSi2 elements-  please choose this option for Brazing.

Please note that the unit is sold with its device performance characteristics.  There is no guarantee for any application.

Part height inside a HOT-TOP is 2″ –  6″ (with a deep dish container)



MHI BPAN PID Digital Control Panel with full electronics

Electronic Control Unit. PID temperature control

Precise control with an advanced adaptive tuner for handling processes with changing characteristics.

Stabilizes the controlled temperature against supply voltage fluctuations on an electrically heated load.

Compatible with MHI-DACS Data Acquisition and other third-party data acquisition software.

The controller interfaces with SCR, soft start, and I2t fuse for smooth power control and protection.

Easy to connect to electrical using (quick connect) connectors.

Wiring requirements:  208/220/230/240 Volt (please specify), single phase @50/60Hz, 25Amp Max current

To learn more about our Hot Top Module, please click here.  Protected by Patent Applications on
CLEAN, GREEN ENERGY ELECTRIC PROTECTORS FOR MATERIALS



High-Temperature MoSi2 Elements or GAXP (User Choice)

US Patent 9,950,362

HotTops™ unique patented design also offers very constructive features

  • Green Sustainable quick Brazing

  • Clean Grain Boundaries in Risers HotTOP castings

  • Clean Equiaxed Castings

  • Allows careful and quick application of intense heat





Applications US Patent 9,950,362

Melting

Heat Treatment

Sensors

Brazing (material and process dependent)

Directional Solidification – riser top

Annealing and more….



Simulation

Thermoplates with Lids

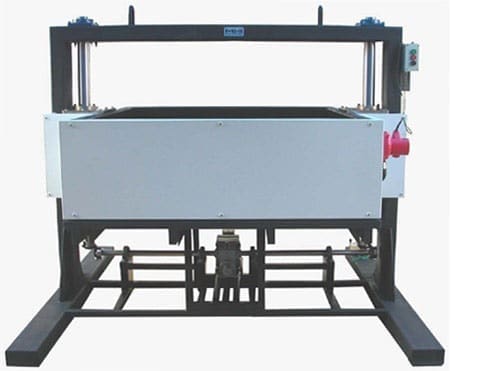

For Extra Large HOT TOP Furnaces click here
