MagnaCoil™ MC-8/1/4/4 & Connecting Wires

$500.00

  • Model: MC-8/1/4/4-1350C
  • Manufacturer: Micropyretics Heaters International

Selected Options:

Control Panels

Please review our Terms and Conditions.

SKU: MC-8/1/4/4-1350C Categories: Microheaters, Microheaters Devices Tag: Powerful Heating Coil
  • Description
  • Specifications

Description

Description:  Magna Coil 1″ Diameter (ID).  The  OD is 1.125″.  Power transformer required to adjust voltage to 208 or 230 or 240V in order to use controls.

  • Coil Length 4″
  • Number of turns ~8
  • Maximum watts ~2KW 50/60Hz
  • Temperature 1350C
  • CHS-OD included.

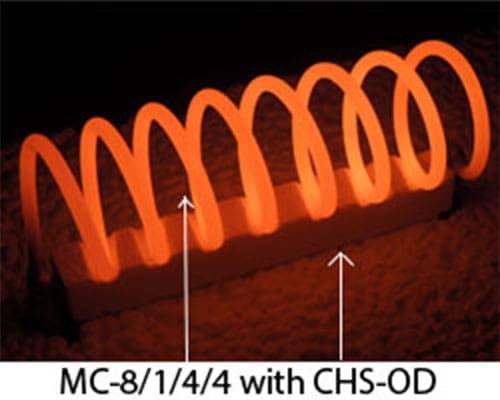

Includes one high thermal shock resistant coil spacer CHS-OD (picture shown), all electrical connects and wires required to connect to a 120 or 220 Volts socket (please specify).   Maximum 1350C.

50/60Hz.  Power Transformer is a required option.

Control Panels:  Optional.

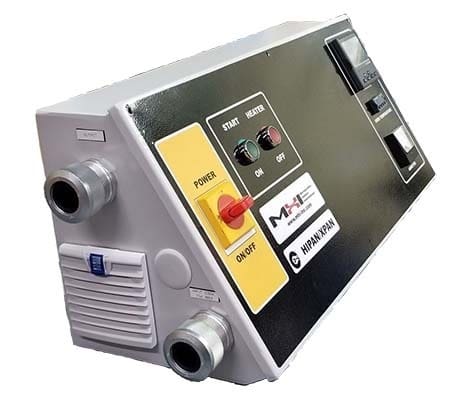

Control Panel option for feed back control choose BPAN-O-PLUS Controller.  Please choose the BPAN-O-PLUS  controller option if a control system is required.  The appropriate BPAN system  for a 120V or 220V supply will be included when selected.  Socket plug to be provided by local electrician for local electrical codes and is not included.  For more information or larger MagnaCoil™ requirements please visit https://www.mhi-inc.com/PG3/high-temperature-coil-elements.html

For additional pictures please link to https://mhi-inc.com/PG3/high-temperature-coil-elements.html

The connector accessories included are shown below.  The CHS ceramic can be used on the ID or OD of the coil.



MagnaCoil Part # Di
Coil inside diameter
LzCoil length

(same as terminal separation for standard coils)

n
Approx. number of turns
Max. Watts

(At Max Temp)

Terminal Type/Length

Cross-Line
In-Plane

Same-side terminals

MC-8/1/4/4

BPAN

https://mhi-inc.com/PG4/electronic-controllers-control-panels.html

1″ 4″ 8 2kW
