MHI MicroCoilGAXP Plate Round Microheaters 1350 C (6 mm Diameter). The flat connector plate is designed for rapid plate dissipation in order to provide a cool connection between supply and heater.
Use for Small Head-Heaters.
Approximately Radiates between 45-130Watts [1.5V @ 30-90A (RMS)]. User please enter maximum current feasible or specify MHI controls.
** Power reported under free radiating/ no-load condition. Note that this is free radiating. Temperature of hot surface ~1200C at highest power.
Temperature will differ on any part that is heated. Coil only. No enclosure.

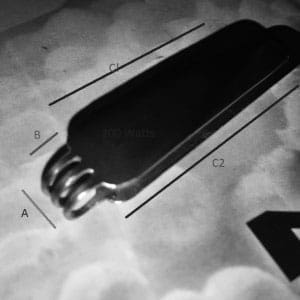

For product shown in diagram A= 10mm, B= 6mm, C1= 25mm and C2= 25mm
Connector accessories if required may be found here.
