Description
MHI Z18-40 Z-Series Box Furnace
Please click here for contact
Continuous use temperatures up to 1760°C
Chamber Size 6″H x 5″W x 6″D. Wall to wall.
Stainless Steel Inside and Outside. Correct thickness for prevention of distortion.
MHI Molybdenum disilicide heating elements
Standard temperature controller programmable with muti-segments
Full furnace electronics included: MHI BPAN-O-Plus
Furnace Power 4.0kW
Please specify wiring requirements 208V, 220/230V, 240V. Single phase 50/60 Hz.

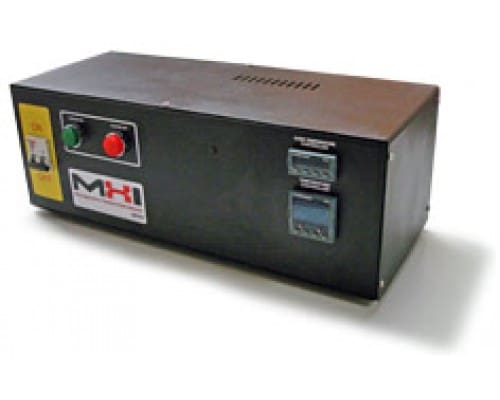

MHI BPAN-O-Plus Control Panel Details:
MHI BPAN-O-Plus control panel with full furnace electronics.
The control panel houses switch gears, fuses, and circuit breaker.
Standard Controller: CE and UL rated Programmable Temperature Controller for heating process.
Featuring 1/16 DIN digital display of set point and process temperature, PID temperature control, and adaptive tuning.
Programming Capability: Multi program with Multi Segments
CE and UL rated over-temperature controller.
Compatible with MHI-DACS Data Acquisition and other third-party data acquisition software. Please contact MHI for information.
MHI ST9001 single phase SCR (or equivalent) with advanced current limit and soft start feature.
Wiring requirements: 240 Volt, single phase @50/60Hz, 25Amp Max current (if voltages of 208V or 220/230/240V are desired, please indicate at time of order)
Maximum power output is 6kW
