GAXP 2″ Spiral Microheater For Vertical Use

$1,395.00 $879.00

  • Model: MC-GAXP-130-V

Available Options:

Control Panels:

Thermocouple

Transformers

DC Power Supply:

Thermocouple Extension Wire(s)

Please review our Terms and Conditions.

SKU: MC-GAXP-130-V Categories: Radiative Heat Products, Microheaters, Microheaters Devices, GAXP Microheaters, High Temperature Radiator 12V or 24V, Microheaters Parts
  • Description
  • Unit Features
  • Specifications
  • Testimonial

Description

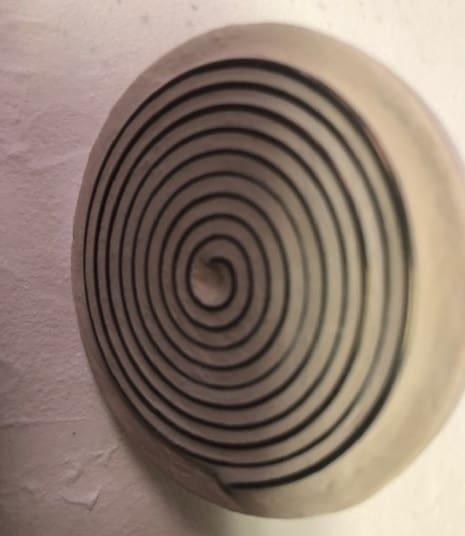

MHI MC-GAXP-130-V Spiral Microheater For Vertical Use.

1200-1250C (OD=2″) Maximum temperature of element in veritical configuration.

Ceramic Base and End Connectors Included

Approximately 700 Watts [26V @ 27A (RMS)]

** Power reported under free radiating/ no-load condition with heater resting on provided ceramic plate.

Connectors comprise of One set of appropriately rated connecting clips and 5 to 8″ braided wire.

Note that the maximum current/power will be different (lower) if covered. Please do not exceed limits of current, voltage or element temperature.

For more information please visit our GAXP Spiral Microheaters page

For controls choose either

Feedback controls namely BPAN-O or BPAN-O-PLUS and Transformer

or

Open Controls with no feedback i.e. the DC Power Supply and a TC Read

Please choose BPAN-O-PLUS-220 when more than 3 units of the 2″ Spirals  are placed in series

Only the BPAN-O-PLUS 120T (120V) option should be chosen when a single 2″ unit is used.

For more information on the BPAN-O-PLUS controller please click to the Power and Temperature Control Panel Pages.

Note that the maximum temperature is at the center of the spiral region unless asymmetric power delivery is required

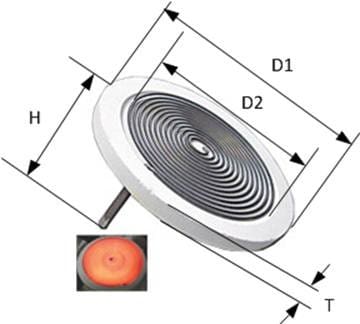

In the diagram in the specifications tab D1 and D2 are separated by 0.1″ T is 0.25″ and H is 2.5″.  D1 is the OD.

For obtaining maximum temperature MHI controls are highly recommended. Large diameter GAXP® microheaters could develop some springiness from induced magnetic forces. Potting in ceramic paste is allowed as long as care is taken to factor-in the loss of any thermocouple response in the measured temperature. Note element temperature will be higher and maximum element temperature should not be exceeded. In the free radiation mode the power can be maximized.

The objective of the use for free radiating devices is to maximize the radiative POWER transfer from the heating elements. If the heating element is covered with insulation, the objective of the user changes to obtain a certain temperature inside the insulated region. The control of temperature inside a chamber, or power maximization in a free radiating mode can be made with MHI temperature and/or power controllers.  When covered the power and current will be lower and the element temperature can be exceeded quickly if not monitored and controlled.  For either objective, one cannot exceed the rated temperature or maximum current of the heating element. Power output will be lower in enclosed radiation mode with a temperature control feature as opposed to or in addition to the power control.
