GAXP-SLOT-HEATER-1″ Zone

$4,995.00

  • Model: GAXP-SLT-HTR
  • Manufacturer: Micropyretics Heaters International

Selected Options:

Connecting Wire and Clips

Stand

Temperature Display:

Transformer/VPAN Variac:

BPAN Model Option:

Transformer for use with a BPAN

Please review our Terms and Conditions.

SKU: GAXP-SLT-HTR-12MM Categories: Microheaters, Microheaters Devices, Radiative Heat Products
  • Description
  • Specifications

Description

Choose the Slot Fiber-Heater Or Microtube Configuration.  The default is that both are provided i.e. with a 2mm center-hole and thin insertion slot.

Power:  ~120W

Type:  GAXP Fiber Heater or  GAXP Microtube heater.  The hole in the center can be a maximum of 2mm.

Maximum Rated Temperature: 1150°C -1200°C.  Use from 100°C-1200°C.  (For higher temperature Fiber Heaters please visit https://mhi-inc.com/microfiber-heaters-fiber-heaters/)

Dimensions 1.13″ x1.13″ x 2.13″. At 500C approximate uniform length is ~1″.   At 800°C approximate uniform length is ~15-18mm.

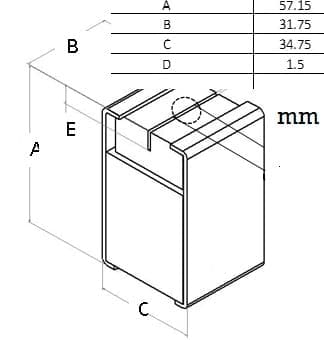

Slot depth (E Dimension in the diagram below) is 12 mm.  No charge for minor slot customization.  T/C included.

Stainless Steel Casing is an option.  Please choose from the pull-down menu.

The stand is Stainless Steel and allows wide positioning flexibility for vertical or horizontal use of the slotted heater.  When unit is purchased without MHI Controls the Stand is not included.

For Control Panel Options,  please click on the specs tab.  These are either:

Option 1) VPAN +  the  TC-Read may be purchased from the optional items for Variac open-loop control and temperature display.

Option 2) A BPAN-O-PLUS and Transformer – also available in the options section.  This option provides a fully closed-loop control.   cUL Canada or UL rating is offered.

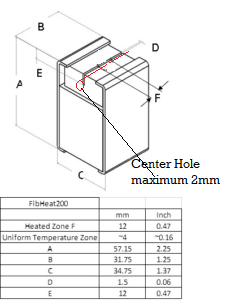

Microtube GAXP

The E dimension is 12mm but alterations can be made on the order up to 15 mm.

Packaging & Handling charges and Shipping charges are for the SLOT Heater Only.  If  Options are added these prices will increase and the adjustment will be made when the order is processed.  An updated total will be sent to you.

Control Panel Options:

Please choose either the VPAN and Temperature Indicator (for the Thermocouple).  This VPAN  option is an open control -i.e. no feedback option.  Both VPAN and temperature indicator must be chosen in the options if they are required..

SLOT-GAXP-HEAT-12MMSLOT-GAXP-HEAT-12MM

or

Please choose a BPAN-O-PLUS and Transformer Option for a closed loop control function  This option is a closed loop option for setting the temperature. Both the BPAN and Transformer Option have to be chosen for this option. cUL rating for Canada is an optional pull down.

SLOT-GAXP-HEAT-12MMSLOT-GAXP-HEAT-12MM

DC power supplies are not recommended for this product.
When unit is purchased without MHI Controls the Stand is not included.
