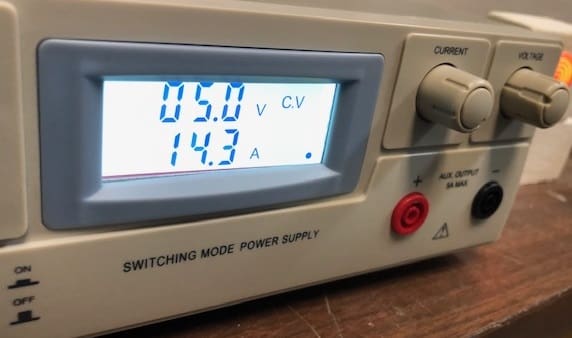

Heat PadPicture of DC Supply (NFB)
  • Product Overview
    • Decarbonization and Energy Efficiency
    • Useful Links
  • Electric Air and Process Gas Heaters
    • Airtorch Applications. Applications for Process Air And Process Gas Heaters.
  • Superheated Steam Generators
    • Learn Steam
    • Steam Applications
  • Radiative Glow Panels
  • Microheaters
    • Microheater Applications
  • Electric Control Panels
  • Thermoplate
  • e-Ion Plasma
    • e-Ion Applications
    • e-Ion Zapper Furnace
  • Heating Elements
    • GAXP Elements
    • Silicon Carbide
    • Molybdenum DiSilicide
    • MagnaCoil
      • HotTop
      • Flat Panels
    • Fiber Heater
    • Microtube Heaters
    • Micro Igniters
    • Robust Radiator
  • Furnaces
    • Box Furnace
    • Horizontal Tube
    • Bottom Loading
    • Front Loading
    • Vertical/Split Tube
    • Accessories
  • Gas Panels
  • Data Acquisition System
  • Customer World Map
  • Useful Links
  • Commercial Steam Cleaner
    • Steam Boiler
    • Electric Steam Boiler
  • Muffle Furnace
    • Tube Furnace
    • High Temperature Furnace
    • Lab Furnace

Type a value in either field to convert the temperature:

Output :

Gen2 HeatPad With 2″ Diameter Hot Zone

$1,595.00

  • Model: Gen2-2.0
  • Manufacturer: Micropyretics Heaters International

Selected Options:

Please review our Terms and Conditions.

SKU: Gen2-2.0 Categories: Microheaters, Microheaters Devices Tag: Heat Pad and Power Supply
  • Description
  • Unit Features
  • Specifications

Description

Gen2 HeatPad™ 2″

Versatile high-temperature HeatPad™ is available in many sizes. The maximum plate surface depends on the load. A non-reactive ceramic pocket type design allows inserting, hanging, and positioning your HeatPad™  virtually anywhere. A low heater profile is excellent for applications for localized heating, substrate heating, mechanical pump vacuum environment, and moderate high-pressure environments. Several thermal and acid-resistant accessories are also available, like the NanoFractalAlumina™ plate and extremely high thermal shock-resistant plate

  • *NEW* Internal K-Type TC Standard (included in price). With the purchase of the Heatpad™, a calibration chart of pyrometer surface temperature (with no load) vs. T/C read-temperature is provided.
  • 2″ diameter hot zone
  • Best to use pyrometer.
  • The surface temperature depends on the type of load. The estimated surface temperature with no load (free radiating) is about 1050°C measured with a pyrometer with 0.5 emissivities.
  • Voltage Maximum – 10V
  • Maximum Current – use up to 13.5 to 14.0 Amps (depending on load or coverage of the plate, the current will be lesser ~11amps). A cautious increase in current is recommended when using closer to the maximum temperature.
  • New Glass in Gen 2.
  • Low profile
  • For HeatPad™ ceramic repairs, please use FractalPaste.
    Warning: This is an electrical device that can achieve very high temperatures. This device can internally reach temperatures over 1100°C before burnout. Please follow all local codes and safety procedures. Consult your local electrician to review and be aware of safety hazards when working with electrical devices.   Please use caution to avoid burns or fire hazards. Read the manual carefully, and do not hesitate to contact MHI or Dealer for assistance.
  • Note although an internal T/C is provided, the use of a pyrometer is recommended in case T/C has moved from the location.
  • Note heaters inside the HeatPad one should never exceed ~ 13.5 to 14.0 amps max.  When a load is applied (e.g., the unit is covered with a sample), the maximum current required may only be 10 to 11 amps at a steady state.  Not to be used inverted.

The weight will be calculated with the control panel option when checking out.

The correct weight and shipping price will be shown in the final acknowledgment from MHI.

Power Supply Options

  1. Open Loop DC power Supply (no transformer required), but please obtain a TC Read for temperature measurement.
  2. Closed Loop BPAN and Transformer.

Thermal shock resistant, high density NanoFractalAlumina™ translucent setter plates and crucibles (sold separately). For Alumina boats and crucibles visit our Alumina pages. Placing a NanoFractalAlumina™ object or other objects on the Heatpad™ will generally reduce the current input required to obtain a particular surface temperature of the HeatPad™. Excees current input can burn out the HeatPad™. Do not exceed 4.5 Volts on 1″ HeatPad or 10 Volts on 2″ heatPad. The optional TPAN (open loop controller- no feedback) can be used for the power supply or a BPAN (closed loop controller with feedback) can be used for control. The open loop controller requires continuous monitoring specially for proposed use conditions that are close to the product design limit. Closed loop controllers perform automatic monitoring after being set. A thermocouple is included. It is strongly advised to monitor the internal temperature and if possible the surface temperature of the Heatpad™ to ensure that the maximum temperature limits are not exceeded. The thermocouple included can be read with optional TC-Read-110V or any other K-type thermocouple reader. To monitor the Heatpad surface temperature so that surface temperature you will need pyrometer. If care is taken that the maximum temperature, maximum voltage and maximum current are not exceed then the measurement of the surface temperature is not required. The rated temperature is given in installation manual. The current draw may be far lesser than the maximum amps when the HeatPad is not in the free radiating condition of use i.e. no load is present. Regardless the maximum voltage and internal temperature should not be exceeded.

Hot-Zone Size (Diameter in inches)

2″

Outer Dimensions

5″ x 3″ x 1″

Maximum Temperature as measured with a pyrometer.
Calibration chart with internal T/C will be provided.
Generally internal T/C will read lower.

1050°C

Maximum Power available

100 ~ 130 watts

Maximum Current Allowed (Currents vary depending on load)

12 ~ 14 Amps
