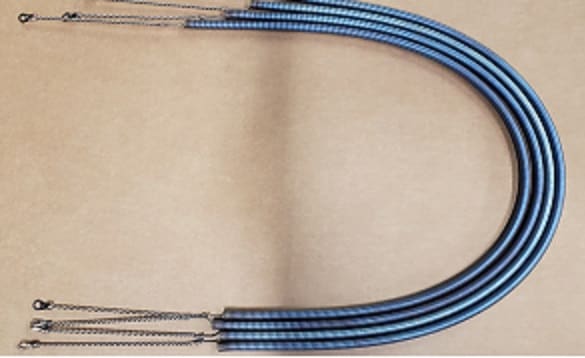

Coil for ~5KW- GAXP1168

$672.00

Please review our Terms and Conditions.

SKU: Coil for 5KW- GAXP1168 Categories: Bare Heating Coil, Furnaces, Heating Elements, Radiative Heat Products Tags: bare heating coil, heating coil
  • Description

Description

GAXP-1168 Material.   Metallic.

Diameter of Coil ~11 mm.

Length is ~35″ Long Multi-turn.

Easy-to-use connectors are included with each coil.  Minimum quantity of purchase may apply.

Minimum quantity of purchase may apply.  Please indicate in the comments if lugs are not required.  No other coil supporters included.

20-24 Amps RMS plugs into 208/220/230 or 240V.  Power will vary with source voltage.  Maximum coil temperature range 1000- 1300°C.  Please call MHI (513-772-0404) for details.

The coil will feel springy.

No supports included.   Only the bare coil and connectors only offered with this part number.  To purchase this coil,  a user-level responsibility and experience is assumed for use in a manner where the coil segments do not touch when energized.  The bare coil will be electrically and thermally active.  Purchasers must use a qualified electrician as per local codes.

Open Coil Use Power: ~5KW  (Open coil use –  means free radiating condition i.e. not used inside an enclosure)

Inside an insulated enclosure, the coil power is approximately 2.5 KW

For Single Phase Control Panels. Choose BPAN-O-PLUS 220 for up to 7 KW Power.  Use XPAN for up to 16 KW Power.
