Description
Model: MC-GAXP-375

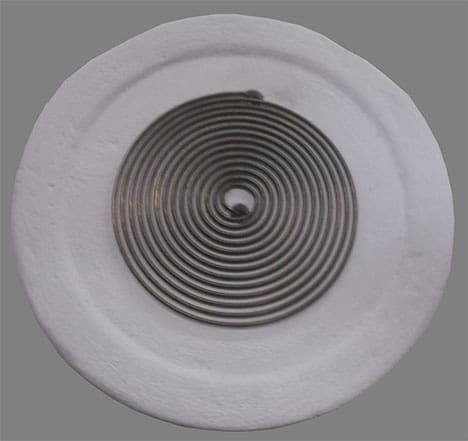

MHI GAXP Spiral Microheater 1400C
Ceramic Base Included with MC-GAXP-375
D1=5″ and D2~3″ T is 0.25,” and H is 2.5″.
Approximately 1800 Watts [64V @ 27A (RMS)]
** Power reported under free radiating/ no-load condition with heater resting on a provided ceramic plate. Horizontal use only – do not invert.
Connectors comprise One Set of Appropriately rated connecting clips.
If covered, the maximum current/power will be different (lower). Please do not exceed the limits of current, voltage, or element temperature.

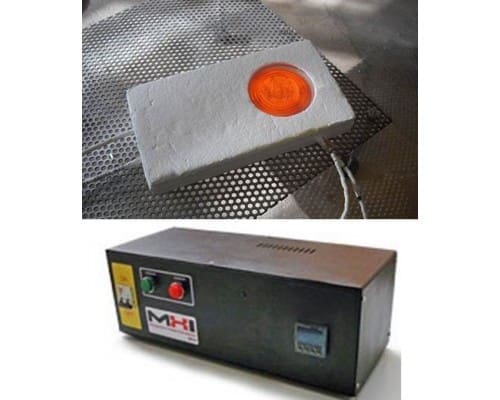

A control system for this microheater includes a step-down transformer and a BPAN-O-PLUS Panel. Typically a temperature is set on the Panel Controller. Alternatively, a maximum power output can also be set on the controller. Either a K-type and B-type thermocouple (TC) may be ordered. The controller is factory set to the TC ordered.
For more information, please visit our GAXP Spiral Microheaters page
For more information on the BPAN-O-PLUS controller, please click on the Power and Temperature Control Panel Pages.
Alumina ceramic is rated to 1800C.
Please note that the shipping price will be adjusted in the acknowledgment to be more accurate and reflect the options.
Note that the maximum temperature is at the center of the spiral region unless asymmetric power delivery is required
In the diagram in the specifications tab D1 and D2 are separated by 0.1″ T is 0.25″ and H is 2.5″. D1 is the OD.
For obtaining maximum temperature MHI controls are highly recommended. Large diameter GAXP® microheaters could develop some springiness from induced magnetic forces. Potting in ceramic paste is allowed as long as care is taken to factor-in the loss of any thermocouple response in the measured temperature. Note element temperature will be higher and maximum element temperature should not be exceeded. In the free radiation mode the power can be maximized.
The objective of the use for free radiating devices is to maximize the radiative POWER transfer from the heating elements. If the heating element is covered with insulation, the objective of the user changes to obtain a certain temperature inside the insulated region. The control of temperature inside a chamber, or power maximization in a free radiating mode can be made with MHI temperature and/or power controllers. When covered the power and current will be lower and the element temperature can be exceeded quickly if not monitored and controlled. For either objective, one cannot exceed the rated temperature or maximum current of the heating element. Power output will be lower in enclosed radiation mode with a temperature control feature as opposed to or in addition to the power control.
