Gen2 HeatPad with 3.5″ Diameter Hot Zone (400W)

$2,725.00

  • Model: Gen2-3.5
  • Manufacturer: Micropyretics Heaters International

Selected Options:

Please review our Terms and Conditions.

SKU: Gen2-3.5 Categories: Low Profile, Microheaters, Microheaters Devices Tag: Heat Pad and Power Supply
  • Description
  • Specifications

Description

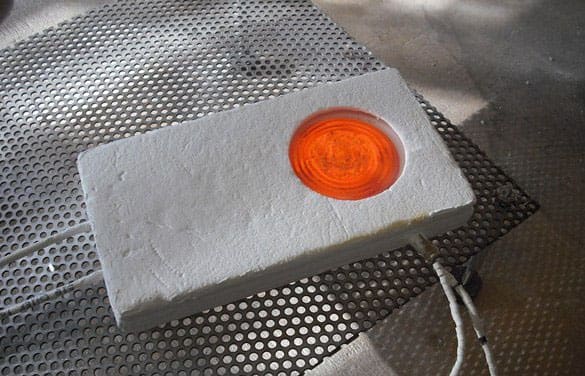

HeatPad

  • *NEW* Internal K-Type TC Standard (included)
  • 3.5″ diameter hot zone.
  • Rapidly heat area to 1050°C (Internal temperature).  Calibration is provided in the manual for T/C.
  • Up to 1000°C surface temperature
  • Voltage – ~40V
  • Maximum Current – use up to 11.5 Amps (depending on load).  Special high thermal resistant glass with GEN 2 models.
  • Non-reactive CerAll(TM)  ceramic pocket
  • Low profile (approximately 1/2″)

Thermal shock-resistant, high-density NanoFractalAlumina™  translucent setter plates and crucibles (sold separately). For alumina boats, visit our Alumina pages.

For HeatPad™ ceramic repairs, please use FractalPaste(TM)

Warning: A calibrated BPAN-O-PLUS is highly recommended when used at high temperatures (CHOICES OF 120v, 220/240v, AND Ul AND NON Ul RATED MODELS ARE OFFERED).  When provided the UL rating is 508A standard.  This is an electrical device that can achieve very high temperatures. Please follow all local codes and safety procedures. Consult your local electrician to review and be aware of safety hazards when working with electrical devices. This device can reach temperatures over 1200°C. Please use caution to avoid burns or fire hazards. As you place insulating materials on the heat pad, the maximum temperature is achieved with lower currents than when the heat pad is free-radiating. All users should control the heat pad properly and not exceed the maximum rated temperature on the pad surface. Not to be used inverted.  Both the maximum temperature and maximum current should be monitored.

The weight will be calculated using the control panel option when checking out.

The correct weight and shipping price will be shown in the final acknowledgment from MHI.

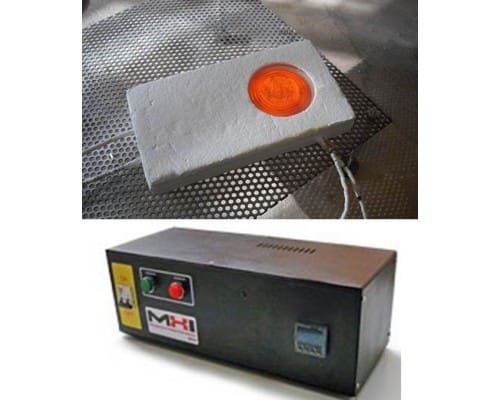

MHI BPAN-O-120T or BPAN-O-PLUS-120 PID Digital Control Panel with full electronics  Electronic Control Unit. PID temperature control.  Precise control with advanced adaptive tuner for handling processes with changing characteristics. Stabilizes the controlled temperature against supply voltage fluctuations on electrically heated load.  Compatible with MHI-DACS Data Acquisition and other third-party data acquisition software.

BPAN-O-PLUS has an additional overtemperature controller compared to BPAN-O.

The controller interfaces with SCR, soft start and I2t fuse for smooth power control and protection. Easy to connect to electrical using (quick connect) connectors. Wiring requirements:  120Volt, single phase @50/60Hz, 25Amp Max current

MHI ST9001 single-phase SCR (or equivalent) with advanced current limit and soft start feature in non UL models

Eurotherm or equivalent SCR in UL Models
