Type a value in either field to convert the temperature:

Output :

VTA750-2GC

$1,998.00

  • Model: VTA750-2GC
  • Manufacturer: Micropyretics Heaters International

Selected Options:

Please review our Terms and Conditions.

SKU: VTA750-2GC Categories: Airtorch Devices, Airtorch® Process Air Heaters Available in the MHI Store, Store, Web Specials Tags: 220V, Airtorch, Process Air Heater
  • Description
  • Specifications
  • Testimonial

Description

A heavy-duty 2kW air heater with an illuminated power switch with fan and fan control. Plug-in  208-240V Model. Industrial use. Scroll to the bottom of this page for a video clip.

Output air at 800C is about 8 ACFM (226 liters per minute).

Flameless Electric Heating for melting Snow and quick heat. 2KW= 6824 BTU/hr.  Electric energy is unlimited, unlike a propane torch that has a container.

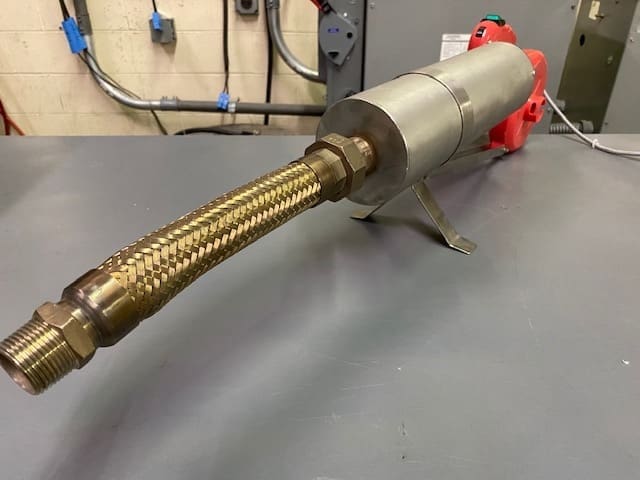

The Vittori extender tube (see video) may be purchased in the options. Vittori tube is 304 Stainless Stainless Steel 1200°F/1250°F air capable. About ~8″ bend diameter depends on the length.

The suggested maximum rated temperature of the air at the exit of the VTA is ~750°C (1382°F) for long life. The unit can also perform to a maximum of ~900°C (1652°F). A temperature drop will be experienced at the end of the Vittori tube.

  • 2kW Hot Air Unit • 208 to 240V Supply. 50/60Hz
  • ~22″ long. 1/2″ NPT output. Weight with blower ~4.6Kg. Legs provided.
  • Speed control for a fan to adjust the temperature.

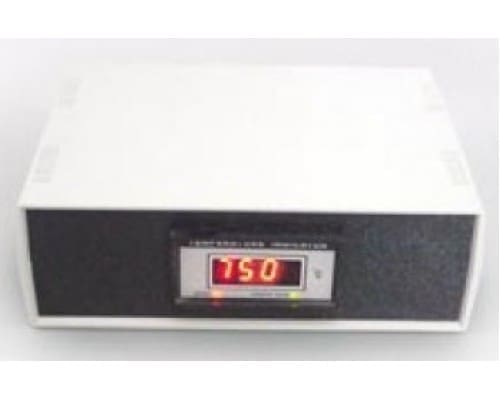

  • Please use the TC Read option (120V) for monitoring or displaying temperature.
  • On-off Power Switch for Heater
  • The unit contains an integral thermocouple (requires optional TC-Read-110V display or equivalent for temperature read-out.).
  • Typical SCFM expected for 750°C temperature is ~5 SCFM (for 240V).   Varies with room temperature, voltage input, and type of use.
  • No backpressure allowed. Free flow of air required.

Adjustable fan flow control included  – fan included.

The thermocouple is included.

The TC-Read or BPAN-O-PLUS  are optional items. Note that the TC-Read is only available in the 110V 50/60Hz.    If an option is not listed, don’t hesitate to contact MHI.

Plug not supplied in the standard unit as supplied-user must use a locally approved plug standard for the voltage and power.



The video below demonstrates the rapid melting of ice cubes with an electric hot air weed killer VTA-2GC with an attached flexible tube extender. The video is meant to illustrate power and efficacy.

https://mhi-inc.com/wp-content/uploads/2018/10/Very-Rapid-Melting-of-Ice-Cubes.mp4
  • 2kW Hot Air Unit • 208-220V Supply 50/60Hz
  • ~22″ long.  1/2″ NPT output.
  • 4.6Kg with blower.  Legs provided.
  • Speed control for the blower fan to adjust the temperature.
  • On-off Power Switch for heater
  • The unit contains an integral thermocouple (requires optional TC-Read-110V display or equivalent for temperature read-out).
  • Optional Vittori tube.

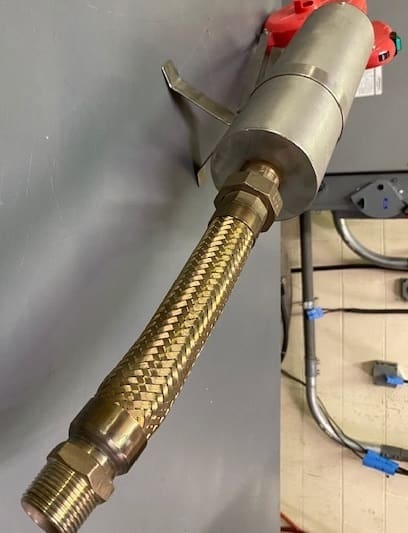

  • VTA 2GC with extender1
