Front Loading Furnace – High Temperature – Large Roof Span

MHI can offer large roof-span furnaces with Nanofractal high-toughness, low distortion roof hangers.

MHI nanomaterial patents at work for our customers in heating elements and refractories

Thick low distortion stainless (double-walled shells)  with easy access design

Check out other unique features that add to uniformity and productivity

Front Loading High Temperature Furnace

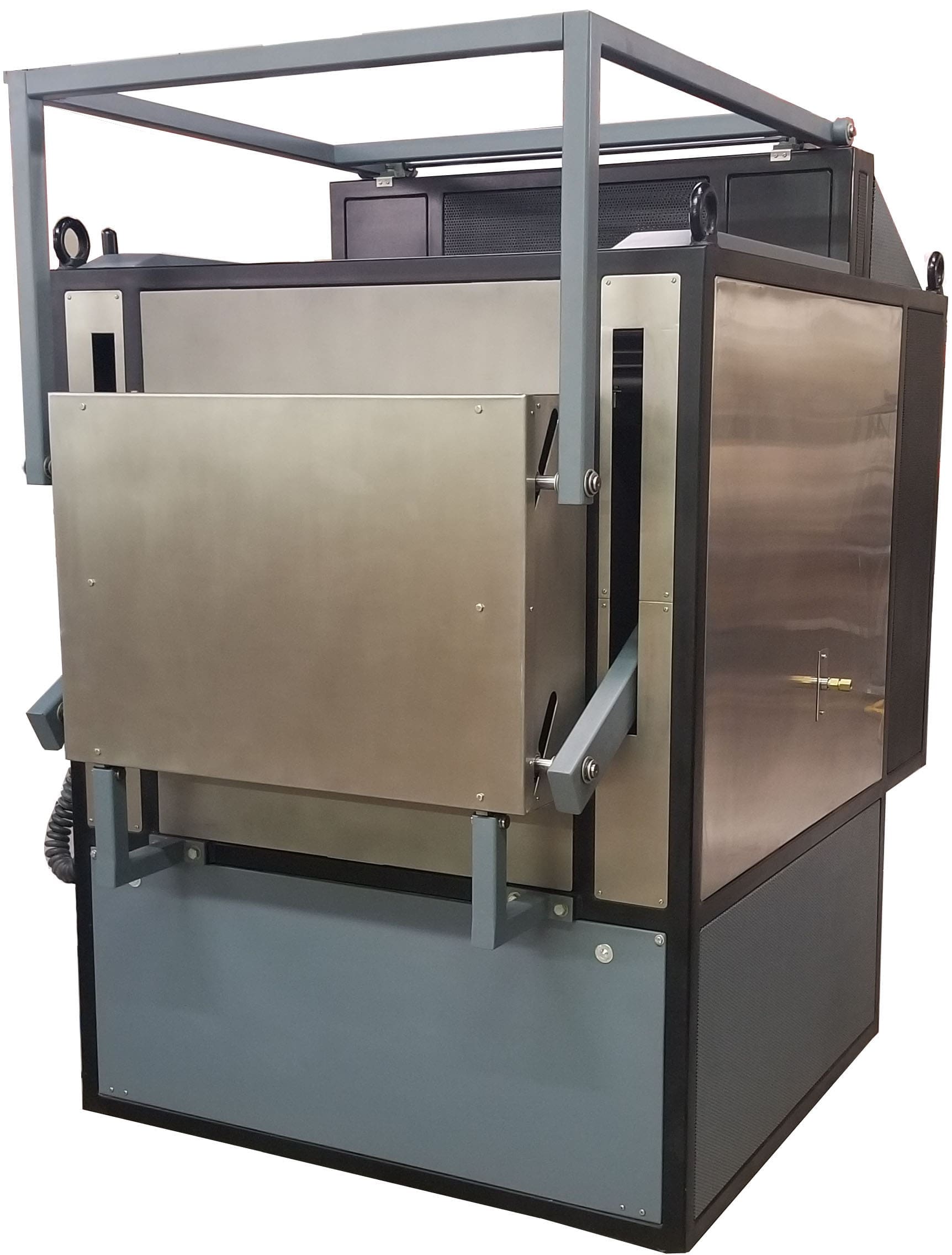

LTF2 Front Loading Furnace

Front Loading Furnace

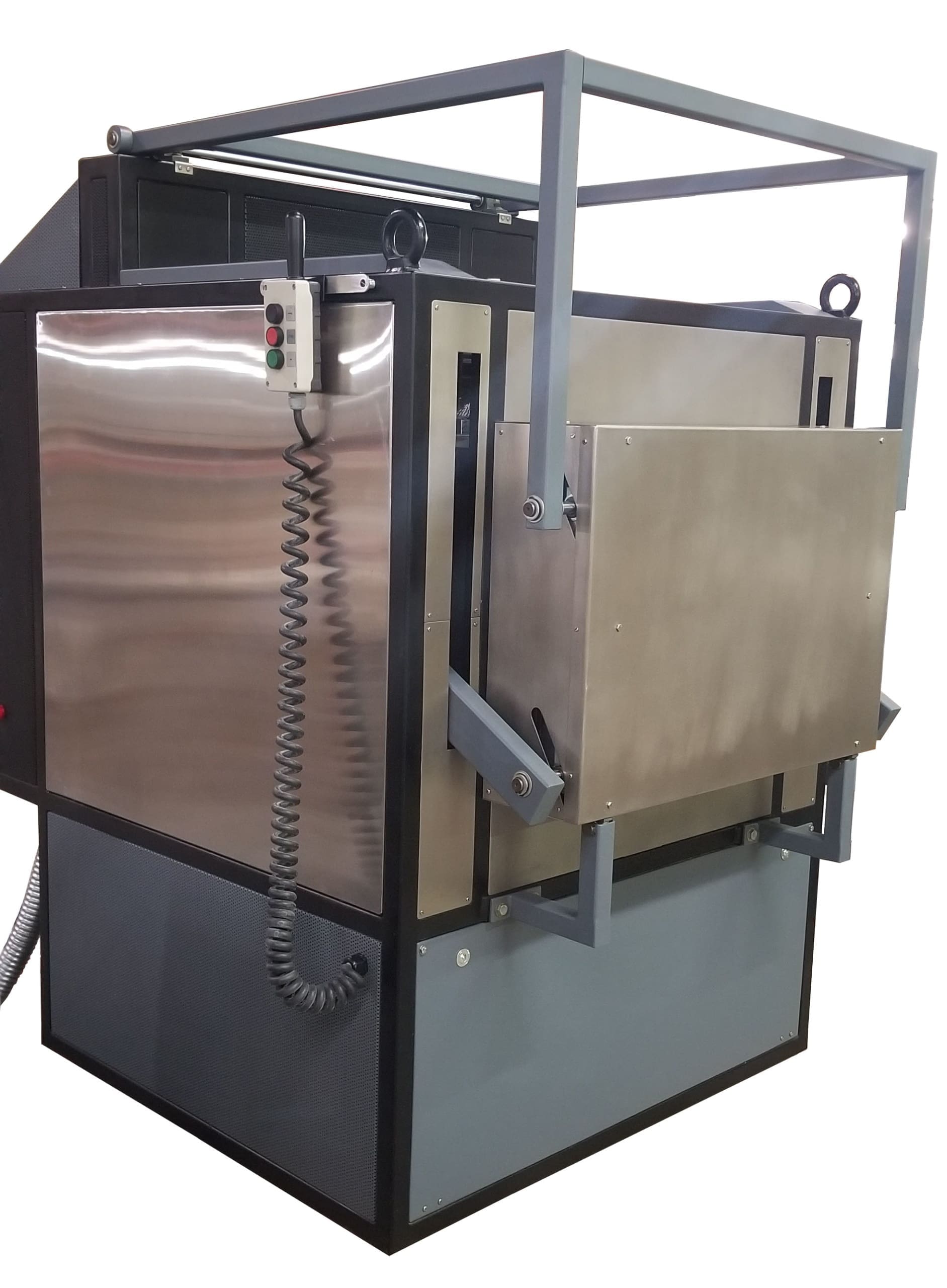

LTF3 Front Loading Furnace


THF-1700 MP


12″H x 12″W x 16″D

Front Loading Furnace Features

MHI’s extensive line of front-loading furnaces has the highest uniformity and energy efficiency ratings in their class.

Front-loading furnaces feature several features:

  • Wide-span roofs
  • MHI’s industry-proven MoSi2 or GAXP® heating elements for faster heating and greater energy savings.
  • Top opening, counterbalanced door.
  • Pneumatic door activated by foot pedal.
  • Double-walled, heavy gauge stainless steel construction; the thickest in the industry.
  • Sleek design minimizes furnace footprint.
  • 3 layers of vacuum-formed alumina/Fiberfree(TM) refractory.
  • Forced air cooling for minimum exterior temperature.
  • 3 phase control with MHI’s TRIPAN control system featuring: state-of-the-art Eurotherm or Honeywell controllers.
  • Controls are remotely locatable, allowing for centralized control of multiple furnaces.
  • User determined hearth height for convenient loading. An optional stand is available.
  • Our front-loading furnaces are designed for maximum productivity.
  • Compatible with our low-cost Data Acquisition and Control Software.
  • Contact Us for information on customizing production furnaces for process manufacturing and glass melting.

Useful Information

What kind of uniformity do MHI furnaces offer?

What kind of energy efficiency do MHI furnaces offer?

Front Loading Furnace Models

MHI front loading furnaces feature rugged stainless steel construction, electronic controls capabilities, and MHI’s highly acclaimed heating elements. Standard features also include a top opening, counterbalanced pedal activated door, 3 layers of refractory, and several ergonomic features to improve productivity. Front-loading furnaces feature maximum operating temperatures of 1800°C and continuous operating temperatures of up to 1760°C. See the tables below to determine which model is best suited for your application.

Furnace Volume Conversion [1 cu.m=61023.8]
Model Number Temperature Interior Dimensions
LTF2-11-17 1100°C – 1700°C
(2012°F – 3092°F)
16″H x 24″W x 24″D

5.5 Cu.Ft (0.15 Cu.m)

LTF2-14 1400°C
(2552°F Max)
16″H x 24″W x 24″D

5.5 Cu.Ft (0.15 Cu.m)

THF-1400-(6-12)- GAXP

THF-1700-(6-12)- MP

1400°C-1700°C 6-12 Cubic Foot Furnace (~0.2-0.4 cu.m)

Hearth up to 40″x 40″

Easy Waist Level Loading

Request Quote

Box and Muffle Furnace Models

All MHI box and muffle furnaces feature rugged stainless steel construction, electronic controls capabilities, and MHI’s highly acclaimed heating elements. Our furnaces feature maximum operating temperatures of 1800°C and continuous operating temperatures of up to 1760°C. See the tables below to determine which model is best suited for your application.

M-Series Box Furnace Models
Model Number Temperature Chamber Size
M14 1400°C
(2552°F Max)
12″H x 12″W x 16″D
M18-40 Up to 1760°C
(1800°C/3272°F Max)
12″H x 12″W x 16″D
Request Quote
Other Size Box Furnaces
Model Number Temperature Chamber Size
Z18-40 Up to 1760°C
(1800°C/3272°F Max)
6″H x 5″W x 6″D
H14-GAXP 1400°C
(2552°F Max)
8″H x 7″W x 8″D
H18-40 Up to 1760°C
(1800°C/3272°F Max)
8″H x 7″W x 8″D

(Limited Quantity)

Up to 1760°C
(1800°C/3272°F Max)
12″H x 12″W x 13″D

Other Box Furnace Models

Z Series | H Series | N Series | M Series

Furnace Accessories

MHI now offers a variety of accessories to be used with our furnaces. Common accessories are clips, braided wire, hangers and other useful tools. To view these accessories, visit MHI Element Accessories or BuyMHI.

LTF 2 31

Furnace Controls

MHI offers remotely locatable electronic controllers with features such as overtemperature controls and programmable steps. In addition to standard electronic controls, MHI DACS allows for data logging and intricate step programming.

MHI Furnace Controls
Many of MHI’s electronic furnace controllers feature multiple voltage inputs, overtemperature controls, programmable cycles and a number of other features. For more information about MHI’s control panels, Contact Us or See More Information. 3 phase 380V 400V 440V 480V 600V
Request More Information

MHI Data Acquisition and Control Software (MHI DACS)
MHI Tube Furnaces are compatible with MHI DACS and Dacs 2 for furnace controls, 100 step programming, data logging and more. DACS also allows for remote furnace control, allowing one central location to control multiple devices.
MHI DACS Software
Request More Information

Furnace Summary

MHI has pioneered several specialty furnaces.  Standard furnaces are listed above. Many can be customized to the requirements of the user.  Please click on a category below.   Please also contact MHI if seeking to upgrade an old furnace with the modern GAXP® heating elements or fiberfree™ insulation. Rapid cooled sealed furnaces for Austempering and Martempering or similar heat treat conditions with accurate hold temperatures. Industries served include the industrial, heat treat, medical, commercial, R&D, innovation, packaging, instrumentation, aviation, transportation, refrigeration/air conditioning, ashing organic and inorganic samples, petroleum refining, gravimetric analysis, biomass, chemicals, forest products, iron and steel, food and beverage,cement, glass, fabricated metals, plastics and rubber products, reactors, alumina, aluminum, transportation equipment, foundries, computers, electronics, and electrical equipment, textiles, machinery, and all types of critical manufacturing.
