SC-4

Description

Electric Steam Superheater SC-4 (220V/230/240V, Nominal 4kW). 50/60Hz.   For 3.5 Kg/hr, steam heating from 300C to 750C. The minimum inlet is dry steam at atmospheric pressure, and the maximum outlet is 500C or 750C.

4 kW Total Power (Nominal @ 240V). 4 KW is the power at 240 V. If the supply is 208V, please note that one will only obtain a maximum of ~3.3 KW. For 230 V, the power draw will be 3.9 KW. For 277V, Single-Phase, the Outlet is restricted to an output of 500C or 750C.

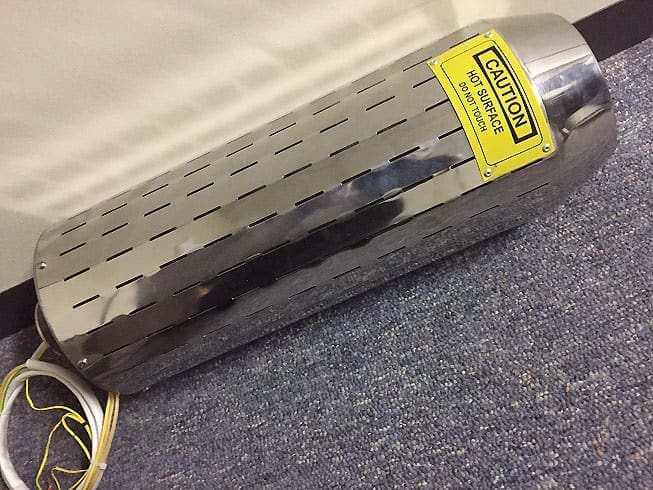

The picture shown is illustrative only. The superheater comes with an in-built Type “K” thermocouple – standard.

Note: Parts of the surface are hotter than 50°C (DO NOT TOUCH).  The superheater will be hot to the touch. Please wear high-temperature gloves and other safety devices.

Unit Features:

• Steel Shell Construction
• Built-in Type K thermocouple
• Lightweight with a compact, ergonomic design
• 208/220/230/240V plug-in design
• Rapid heat-up
• Steam compatible
• Outlet 3/8″ Inlet K type steam clamp 2.”

Typical use with an OAB-4 is shown in the picture below.

Specs:

• Dimensions: Unit: 4.0″ dia x 18″ L
• Weight: Lightweight with a compact, ergonomic design
• Temperature: ~750°C continuous or sometimes even 800°C with intermittent use
• Voltage: 208/220/230/240VAC Frequency: 50/60 Hz
• Current: ~ 9 Amps @ 208/220/230/240VAC  4 kW Total Power (Nominal @ 240V). 4 KW is the power at 240 V.  If the supply is 208 V, please note you will only obtain a maximum of ~3.3 KW. For 230V, the power draw will be 3.9 KW.
• Power Consumption: ~ 4000 Watts Output Nominal
• Optional Power Control: Output temperature may be varied by changing the steam or by changing the output power in the optional BPAN-O-PLUS
• Built-in thermocouples can be linked for external display.
• If a Control Panel is required, the BPAN-O-PLUS is recommended. Please click here.
