Microheaters™ - Small Scale Heaters

MHI offers a wide array of small to micro sized heating elements.

MHI HeatPad S12 microheaetr 12 V MHI Microfiber
MHI Microcoil MHI Microtube MHI Serpentine
MHI Spiral Microheater MHI Spiral GAXP

Standard Microheaters™ are shown below.  Custom - special orders are available for variations on many models.

All of MHI's Microheaters™ utilize the patented NanoFractalAlumina™ and Fractalins™ materials, allowing for the higher tempeartures and the corresponding energy efficent smart-device performance criterion set by MHI.

The objective of the use of free radiating devices is to maximize the RADIATIVE POWER transfer from the heating elements.  If the heating element is used with an insulation , the objective of the user changes to obtain a target temperature inside the insulated region and therefore the quality of insulation matters.  For either objective, one cannot exceed the rated temperature of the heating element.  Please that the maximum temperature for any thermal device is reported at a specific region (location).

Which Microheater™ line is best for your application?   For questions, please do not hesitate to Contact Us by email or by a call to 513-772-0404.

For obtaining the maximum rated temperature, the use of MHI controls is highly recommended.

Spiral Microheater (1400°C and 1900°C)

View More Information

GAXP Sprial microheater

New controls available
Terminal Connections Tutorial Video

Available Models/Sizes

Maximum Temperature Key Selection Feature

General Specifications:

MC-1900-1 - 1900°C available in 1" and custom
GAXP® - 1400°C 1", 2", 3", 3.5" and custom


 HeatPad™ Microheater (1250°C and 1600°C)

MHI Heatpad HeatPAd

Unique high watt density, one-sided circular spot heater
1", 2", 3", and 3.5" models
Design with terminals as shown
Substrate Heater

Complete controls available

Available Models/Sizes (New Models Gen 2)

Maximum Temperature: Key Selection Feature:

General Specifications:

PH-G4 Models

Thermoplate Models

HeatPads available in 1",2", with controls

Thermoplates available for 1" or 9" Models

Buy Now on MHI Store


 Microtube™ (1600°C - 1900°C)

View More Information

Microtube micro heater High WattsMicrotube heater microheater

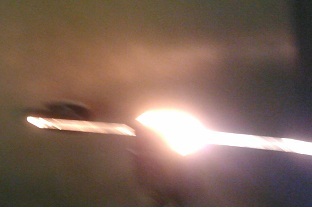

Picture shows glass/quartz fiber placed in microtube and twisted

Allows for light (including IR) to be bent and redirected or fiber to be twisted
Full controls available

Available Models/Sizes

Mutli-Axis Use Stand

Flex Stand  Multi Dimensional Use

General Specifications:

Maximum Temperature: Key Selection Feature:
THM - 1900°C ID = 2 to 6mm


 MicroFiber™   (1900°C)

View More Information

FiberHeater Microheater
GUHE-10 - Uniform Side Hot Zone

(Begining 2017, the GUHE -10 model is replaced by the FIB-THM500 model)

Contact MHI

One of the cleanest and most affordable high temperature electrical solution for fiber heating.
Complete controls available

Available Models/Sizes

General Specifications:

Maximum Temperature: Key Selection Feature:

FibHeat200 - 1900° Element

FIB-THM500 1700°C IG-3-SS- 1600°C

Maximum Watts: ~200W






 S12-Microheater (1600°C Models )





S12 Microheater Class



S12 Microheater





Model: S12

Small Microheater 3mm diamter, 20mm long

1500-1600°C Element GAXP-IgMp

22 Watts, 2 Amps

Special controls

Total heater length 20 mm

Heater length 10mm

Model: S12-200

Small Microheater 20mm long

1500-1600°C Element GAXP-IgMp

200 Watts,

Special  controls

Total heater length 20 mm

Heater length 10mm



General Specifications:

Maximum Temperature: Key Selection Feature

1500-1600°C Element GAXP-IgMp

1500-1600°C Element GAXP-IgMp Contact



Conical Microheaters (1000°C - 1900°C)

Request More Information

MHI Conical Microheater

Multiple specific uses such as IR focusing

Built to Specifications Product. Please contact for specifications. (Specify diameter of both faces of cone and Lz)

New controls available

Maximum Temperature: Key Selection Feature:

General Specifications:

EXP8 -1900 for use in the range of 1600°C- 1900°C (Cone 1"-1/2")

EXP8 -1400G for use in the range of 1100°C- 1450°C (Cone 1"-1/2")

Contact Us



  Micro Igniter (Ignitor) (1600°C Models )

~2 Amps

12 V  and 24 V models

Call for controls

MHI Igniter

New controls available

Heat Fluids and Foams
Hydrogen Products Heater
Use as Igniter (Ignitor)

MicroIgniter GAXP (IgMp) - 12V, 2A

MicroIgniter GAXP (IgMp) - 24V, 2A



MicroDot

General Specifications:

Maximum Temperature: Key Selection Feature

-

Custom
