Description
Hot Air/as Generator Model: LTA750-02. Cartridge Type Hot Air Generator. Please note the LTA stainless steel body will be hot when used above 700C It is the user’s responsibility to wear thermal gloves and glasses and all safety wear.
The maximum outlet temperature is commonly set to ~900°C. The outlet temperature can be 100°C to a maximum of ~900°C. Typically 850C.
Air Flow is ~4 SCFM to 900C. Inlet about 40C
Airflow is ~5 SCFM to 750C. Inlet about 40C

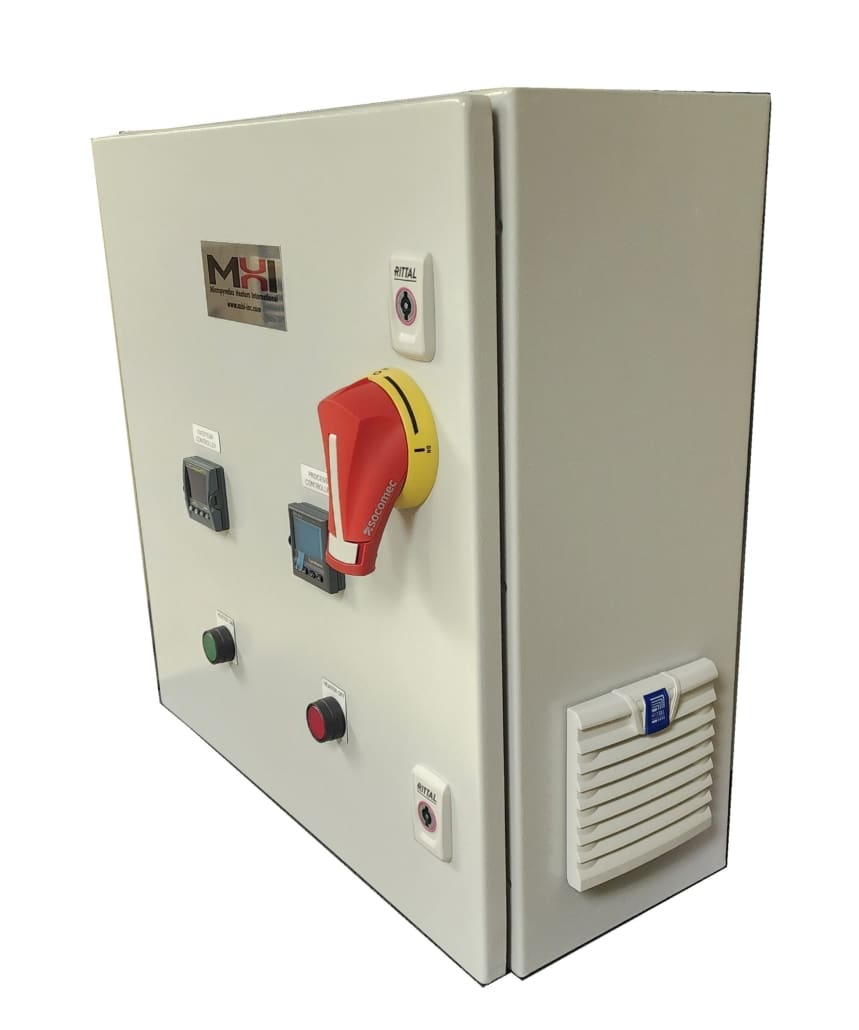

For temperatures about 850C a BPAN-O-PLUS control panel and a very accurate flow meter should be used.
The maximum inlet temperature is ~75°C.
The picture shown may be illustrative only.
The typical is 850/900°C continuous use. Please note the body will be hot when used above 700C.
When used above 750C it is highly recommended to use a accurate flow meter and feedback controls like the BPAN-O-PLUS. One control panel per unit.
Use pressure -one atmosphere. Steady flow required.
The LTA series has a 1/4″ NPTF compressed air fitting for air/gas sources.
The Airtorch® comes with an in-built Type “K” thermocouple.
Air/gas compatible
900°C Max. Use.
Model: LTA-750-02 (208V/220V / 230V/240V) , 2kW Nominal at 240V, ~ 2.5 KW at 277V, 2 KW at 240V, and about 1.75 KW at 208V/220V. The flow must match the power for a typical supply power.
For 208V to 230V, the exit temperature will be 850°C. (Integrated Thermocouple)
Inlet air/gas not to exceed 75°C
Unit Features:
- Steel Shell Construction
- Built-in Type K Thermocouple
- Lightweight, compact, ergonomic design
- 208, 220, 230 or 240V plug-in design
- Rapid heat-up
Such hot air guns are used in plastic welding, heat shrinking of thermoplastics, ceramic drying, on-site heat treatment, plastic forming, and many other applications.
The unique steel shell construction provides efficient heat recovery and management, providing high-efficiency hi-temperature discharge.
This recuperating design eliminates radiant heat loss while enhancing efficiency and maintains a cooler outer shell temperature.
Note: Parts of the surface are hotter than 50°C (DO NOT TOUCH), providing greater operational safety.

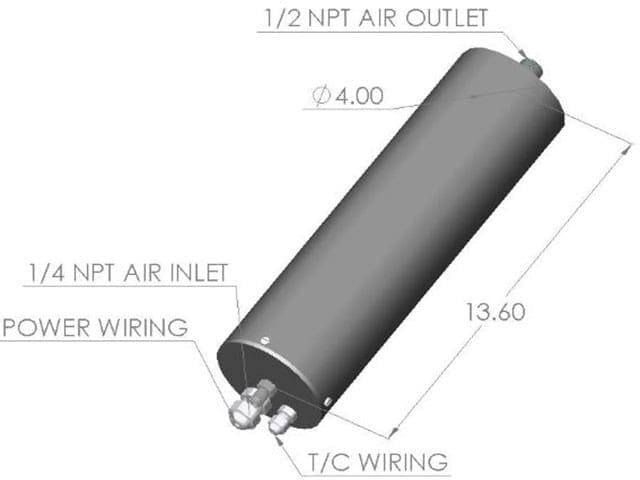

Dimensions: | Unit: 4.0″ dia x 15.5″ L |
Air Inlet: | Compressed Air or Gas (DO NOT USE COMBUSTIBLE GASES). 1/4″ NPT inlet |
Air Outlet | 1/2″ NPT |
Weight: | Lightweight, compact, ergonomic design |
Temperature: | ~850C to 900C. High temperatures require accurate power and flow controls. |
Airflow: | ~Minimum 4- 5 SCFM (maintain minimum flow when used without controls) |
Voltage: | 220/230VAC |
Frequency: | 50/60 HZ |
Current: | ~ 9 Amps @ 230VAC |
Power Consumption: | ~2000 Watts |
Output Power Control: | Output temperature may be varied by changing the airflow or with BPAN-O-PLUS power controllers. The flow meter is optional but recommended for flow setting. |
Standard Accessories: | Display – Not included |
Optional: | LCD switchable between °C and °F. With TC-READ. |
Included: | A built-in thermocouple can be linked for external display. |
