OAB-12 and OAB 4

Description

REQUEST INFORMATION

This page contains information on low-flow electric steam generators. – For the industrial model catalog, please link to Industrial Electric Steam Generators.

OAB^® 4 or 12 Models Fixed FLOW TYPICAL

l Model PICTURES STEAM

m Produced

(nominal)

Total Electric Power
Exit Temperature(nominal values)

OAB-12-400 12 kg/h ~350 to 400C (one atmosphere)

OAB-12-800 (Maximum Temperature 750°C) 12 kg/hOAB-4-300 (Maximum Temperature 350-400°C) 4 kg/h

OAB-4-550 (Maximum Temperature 550-600°C) 4 kg/h

OAB-12-600 (Maximum Temperature 600°C) 4 kg/h

OAB-4-800 (Maximum Temperature 750°C) 4 kg/h

OAB-12-800 (Maximum Temperature 750°C) 12 kg/h

New PV/GHGA Models with the above

Watch a video of the OAB-12—instant dry steam.

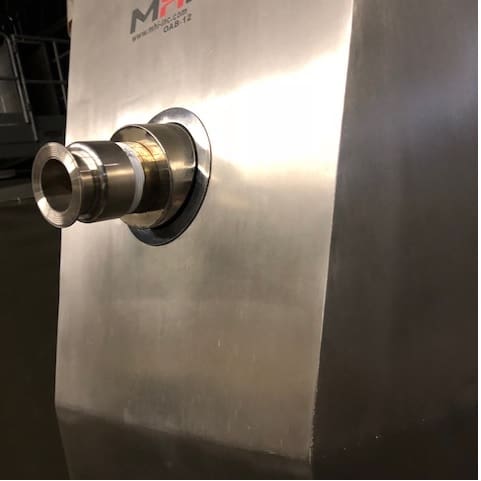

OAB-12-400

OAB-12-550 and OAB-12-800 Models are pictured.

Quad-4 BPE shown below.

Vittori delivery tube and continuous cN-BPE are available for several models.

4-12 kg/hr steam generator

4 kg/h or 12 kg/h Steam. Depends on settings

For steam side flow control, please opt for Quad-4 BPE (discrete) or the cN-BPE (continuous valve) Table top steam generator

For OAB-4, ~4-6 kW single-phase model depends on the options chosen. 300°C-750°C Custom Fit to Application.

For OAB-12, ~ 12 kW single-phase model depends on the options chosen.300°C-750°C Custom Fit to Application

Request a Quote

– Please note units can be one-atmosphere rated or rated to higher pressures, like 2 Bar- please specify

Steam Applications
Steam Comparisons
Request Information

REQUEST INFORMATION

Simple to use for instant steam production and desired flow rate, with HMI/PLC controls in industrial models

CAPEX AND OPEX for larger industrial Models

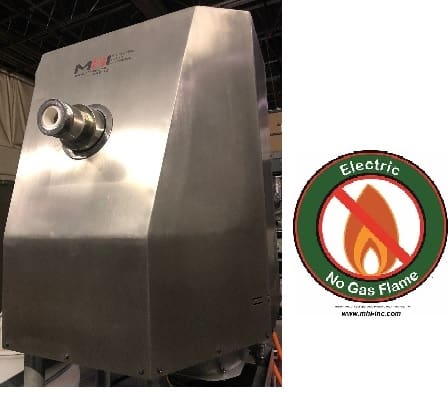

OAB-12-300

Transforming Steam Technology For Significant Energy and Water Savings. Reported savings range from on to off. No tubes or nozzles need to be heated to produce steam. Conventional boilers are never 100% dry, unlike OAB® steam, where heat loss causes steam to condense and become wet as it travels down the steam line. Decreased steam dryness hinders heat transfer; therefore, it is important to monitor steam dryness to provide optimum heating efficiency for your system. The OAB^® steam is very dry. Click to go to the steam generator home page.
